Level 6

Introduction

important

Introduction to LINUX

At present, ROS is fully supported only by Linux systems. This means any ROS-based robot uses Linux, so if you want to create programs for these robots, you have to get ready with Linux.Linux tends to be a highly reliable and secure system than any other operating systems (OS). Linux and Unix-based OS have fewer security flaws, as the code is reviewed by a huge number of developers constantly

In the Linux for Robotics course, you will master essential Linux knowledge in order to get started with ROS.

important

Setting Up Environment

You can choose any one of the three ways to configure your environment.Initially,you can use the Virtual Machine to run linux-based applications and later you could dual boot your system with Linux and Windows. The third option of completely removing Windows and shifting to Linux completely is also present.But initially,it is advised to use any one of the first two methods.

Dual boot Installation:

Switching to Linux can be a big decision, depending on how you use your computer. Sometimes, you just need Windows for specific applications, and sometimes you need Linux for other applications. Whether you are just curious or you need it for work or a personal project, having both operating systems on one computer can be useful.This article will help you install Ubuntu 20.04 and dual boot alongside Windows 10.

Virtual Machine

To install Ubuntu on macOS, Linux or Windows, we can dual boot Ubuntu alongside any operating system. Instead of dual boot, a virtual machine is an alternate solution to install and test all new features of Ubuntu 20.04. So, let’s jump into the Ubuntu installation guide by creating a Ubuntu virtual machine

Ubuntu 20.04 -Removing Windows completely

Remove Windows 10 and completely install Ubuntu

Troubleshooting Guidelines

will keep updating regularly.

Bash script to install ROS/Python and other Tools

• You have to run the following commands

sudo apt install curl
curl -s https://raw.githubusercontent.com/ros/rosdistro/master/ros.asc | sudo apt-key add -

After setting up the linux-installation,we will need to install things like python,vscode and other things.For that you can simply run this bash code in your terminal after cloning this repository. [bash script]

After copying this file to your working folder,run the following commands in your terminal.

chmod +x linux-setup.sh
./linux-setup.sh

Some Issues you might face during ROS installation

1. catkin_make not found

• Run the following and then run the script again

source /opt/ros/noetic/setup.bash

2. python being used instead of python3

• Run the script with noetic argument
• ./linux-script.sh noetic

Courses

Here is the complete course of:

Linux for Robotics ConstructSim Course

You need to complete this ConstructSim course which has the following learning objectives:

• Navigate through a Linux filesystem
• Interact with a Linux filesystem
• Edit files using the Shell (vi editor)
• Manage access to files (Permissions)
• Create simple Linux programs (Bash Scripts)
• Manage execution of Linux programs (Processes)
• Connect to the remote computer of a robot (ssh)

Here is the beginners guide to the Unix and Linux operating system. Eight simple tutorials which cover the basics of UNIX / Linux commands.Here, you can take these tutorials as a guide and currently focus on tutorials 1,2,3,4,5.

Unix Tutorials for Beginners

Linux Assignment

Assignments will be updated soon..

Folder_Maze

Use the linux commands that you learnt to navigate the folder maze,copy the text files with animals to the animal folder and end your quest by finding the treasure.txt file.. -->

Python

Python is the most popular programming language for robots, and it is also the faster and easier way to learn ROS. In this Python3 for Robotics course, you will master essential Python3 knowledge in order to get started with ROS smoothly.

Courses

Here is the complete course of:

Python For Robotics ConstructSim Course

Learning Objectives

• Store data into Variables
• Operate with the data in the Variables
• Change behavior based on Conditions
• Create Functions that can be called from other parts of the code
• Encapsulate the code into Classes so you can have clean and robust code

Apart from the ConstructSim Python course, here is a python course to learn Python like a Professional Start from the basics and go all the way to creating your own applications and games.[Python Bootcamp vids]

You could go from starting of this bootcamp videos till the milestone project 2.

Python Assignment

Fill in the blanks:

NUMPY

Numpy is a scientific computing package in python, that’s extensively used in matrix and array manipulations,transformations, reshaping etc. Numpy is a multi-dimensional arrays library. You can use numpy to store all sorts of data in one dimensional array,two dimensional array,3 D array and so on.

The following link explains all sorts of stuff that can be done using numpy library.

For further reading visit the documentation page for numpy - Overview — NumPy v1.18 Manual They have an introductory guide for beginners and it can be used as a reference page. Numpy QuickStart

OPENCV

OpenCV is an open Source package/library which is aimed at real time computer vision.It can be used for a variety of different applications including face detection, objection tracking, landmark detection, and much more.

Applications of OpenCV:

• 2D and 3D feature toolkits
• Facial recognition system
• Gesture recognition
• Human-computer interaction
• Motion understanding
• Object identification

Initially, it might be difficult to explore all the variety of functions that the OpenCV library offers, but as you work on more OpenCV-based projects, you will get the hang of it.

Getting started with images

Importing libraries

import cv2
import numpy as np
import matplotlib.pyplot as plt

Reading images using OpenCV

OpenCV allowa to read different format of images like PNG, JPG, etc. Image can be loaded in grayscal, color or using alpha channel. This uses cv2.imread() function. The syntax of the function is: image = cv2.imread( filename , [flags])

image is the required image if it loads successfully otherwise it's None

1. filename: This can be the absolute path or the relative path of the image. It is a mandatory argument.
2. Flags: These flags are use dto read image in a particular format. a. cv2.IMREAD_GRAYSCALE or 0: Loads image in grayscale b. cv2.IMREAD_COLOR or 1: Loads a color image. c. cv2.UNCHANGED or -1: Loads image including alpha channel

# Read image as gray scale.
image = cv2.imread("checkerboard_18x18.png",0)

# Print the image data (pixel values), element of a 2D numpy array.
# Each pixel value is 8-bits [0,255]
print(image)

Display images using Matplotlib

# Display image.
plt.imshow(image)

What happened? Even though the image was read in as a gray scale image, it won't necessarily display in gray scale when using imshow(). matplotlib uses different color maps and it's possible that the gray scale color map is not set.

# Set color map to gray scale for proper rendering.
plt.imshow(cb_img, cmap='gray')

Working with Color Images

Until now, we have been using gray scale images in our discussion. Let us now discuss color images.

# Read in image
coke_img = cv2.imread("coca-cola-logo.png",1)
plt.imshow(coke_img)

Huhh! This isn't what we expected? The color displayed above is different from the actual image. This is because matplotlib expects the image in RGB format whereas OpenCV stores images in BGR format. Thus, for correct display, we need to reverse the channels of the image. We will discuss about the channels in the sections below.

coke_img_channels_reversed = coke_img[:, :, ::-1]
plt.imshow(coke_img_channels_reversed)

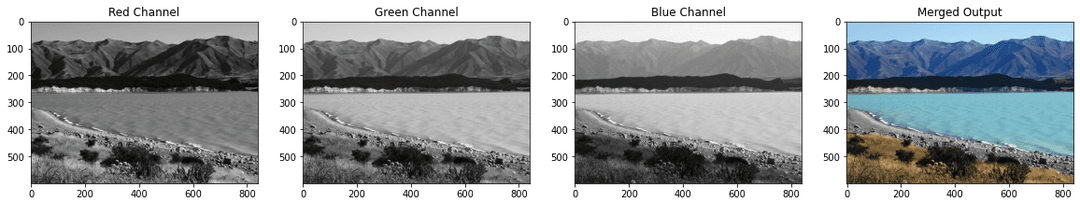

Splitting Color Channels

cv2.split() Divides a multi-channel array into several single-channel arrays.

# Split the image into the B,G,R components
img_NZ_bgr = cv2.imread("New_Zealand_Lake.jpg",cv2.IMREAD_COLOR)
b,g,r = cv2.split(img_NZ_bgr)

# Show the channels
plt.figure(figsize=[20,5])
plt.subplot(141);plt.imshow(r,cmap='gray');plt.title("Red Channel");
plt.subplot(142);plt.imshow(g,cmap='gray');plt.title("Green Channel");
plt.subplot(143);plt.imshow(b,cmap='gray');plt.title("Blue Channel");

# Merge the individual channels into a BGR image
imgMerged = cv2.merge((b,g,r))
# Show the merged output
plt.subplot(144);plt.imshow(imgMerged[:,:,::-1]);plt.title("Merged Output");

Converting to different Color Spaces

cv2.cvtColor() Converts an image from one color space to another. The function converts an input image from one color space to another. In case of a transformation to-from RGB color space, the order of the channels should be specified explicitly (RGB or BGR).

Function syntax: image = cv2.cvtColor( src, code ) The function has 2 required arguments:

1. src input image
2. code color space conversion code (see ColorConversionCodes).

OpenCV Documentation cv2.cvtColor(): Documentation

# OpenCV stores color channels in a differnet order than most other applications (BGR vs RGB).
image = cv2.cvtColor(img_NZ_bgr, cv2.COLOR_BGR2RGB)
plt.imshow(image)

Accessing the camera

import cv2

video = cv2.VideoCapture(0)
video.set(3,640)
video.set(4,480)
video.set(10,100)

while(True):
    success, img = video.read()
    cv2.imshow("Video",img)
    if cv2.waitKey(1) & 0xFF ==ord('q'):
        break

source.release()
cv2.destroyWindow(win_name)

Basic Image manipulation

import cv2
import numpy as np
import matplotlib.pyplot as plt
from PIL import Image

Original image

# Read image as gray scale.
cb_img = cv2.imread("checkerboard_18x18.png",0)

# Set color map to gray scale for proper rendering.
plt.imshow(cb_img, cmap='gray')
print(cb_img)

Accessing individual pixels

For accessing any pixel in a numpy matrix, you have to use matrix notation such as matrix[r,c], where the r is the row number and c is the column number. Also note that the matrix is 0-indexed.

# print the first pixel of the first black box
print(cb_img[0,0])
# print the first white pixel to the right of the first black box
print(cb_img[0,6])

Cropping images

Cropping an image is simply achieved by selecting a specific (pixel) region of the image.

cropped_region = img_NZ_rgb[200:400, 300:600]
plt.imshow(cropped_region)

Before

After

Resizing images

The function resize resizes the image src down to or up to the specified size. The size and type are derived from the src,dsize,fx, and fy.

resized_cropped_region_2x = cv2.resize(image,None,fx=2, fy=2)
plt.imshow(resized_cropped_region_2x)

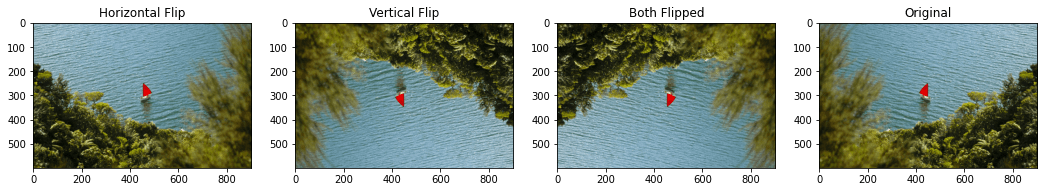

Flipping images

The function flip flips the array in one of three different ways (row and column indices are 0-based):

Function Syntax dst = cv.flip( src, flipCode )

flipCode: a flag to specify how to flip the array; 0 means flipping around the x-axis and positive value (for example, 1) means flipping around y-axis. Negative value (for example, -1) means flipping around both axes.

img_NZ_rgb_flipped_horz = cv2.flip(img_NZ_rgb, 1)
img_NZ_rgb_flipped_vert = cv2.flip(img_NZ_rgb, 0)
img_NZ_rgb_flipped_both = cv2.flip(img_NZ_rgb, -1)

# Show the images
plt.figure(figsize=[18,5])
plt.subplot(141);plt.imshow(img_NZ_rgb_flipped_horz);plt.title("Horizontal Flip");
plt.subplot(142);plt.imshow(img_NZ_rgb_flipped_vert);plt.title("Vertical Flip");
plt.subplot(143);plt.imshow(img_NZ_rgb_flipped_both);plt.title("Both Flipped");
plt.subplot(144);plt.imshow(img_NZ_rgb);plt.title("Original");

Image Annotation

Drawing a Line

We will use cv2.line function for this.

Function Syntax img = cv2.line(img, pt1, pt2, color, thickness, lineType, shift) Example

cv2.line(image, (200, 100), (400, 100), (0, 255, 255), thickness=5, lineType=cv2.LINE_AA);

Drawing a Circle

We will use cv2.circle function for this.

Function Syntax img = cv2.circle(img, center, radius, color, thickness, lineType, shift) Example

cv2.circle(image, (900,500), 100, (0, 0, 255), thickness=5, lineType=cv2.LINE_AA);

Drawing a Rectangle

We will use cv2.rectangle function to draw a rectangle on an image.

Function Syntax img = cv2.rectangle(img, pt1, pt2, color, thickness, lineType, shift) Example

cv2.rectangle(image, (500, 100), (700,600), (255, 0, 255), thickness=5, lineType=cv2.LINE_8);

Adding Text

Finally, let's see how we can write some text on an image using cv2.putText function.

Function Syntax img = cv2.putText(img, text, org, fontFace, fontScale, color, thickness, lineType, bottomLeftOrigin) Example

cv2.putText(imageText, text, (200, 700), fontFace, fontScale, fontColor, fontThickness, cv2.LINE_AA);

Image Enhancement

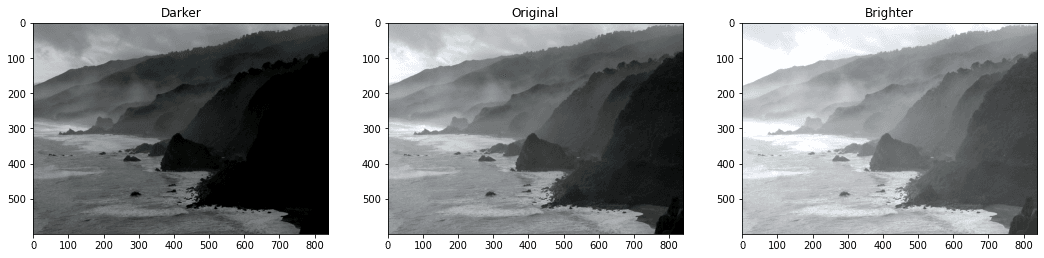

Changing brightness

The first operation we discuss is simple addition of images. This results in increasing or decreasing the brightness of the image since we are eventually increasing or decreasing the intensity values of each pixel by the same amount. So, this will result in a global increase/decrease in brightness.

matrix = np.ones(img_rgb.shape, dtype = "uint8") * 50

img_rgb_brighter = cv2.add(img_rgb, matrix)
img_rgb_darker   = cv2.subtract(img_rgb, matrix)

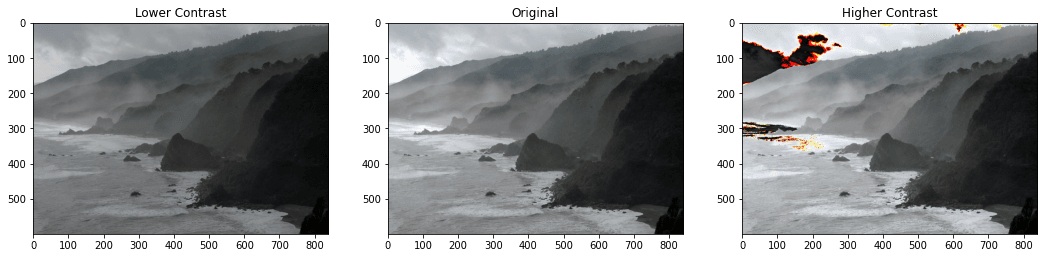

Changing contrast

Contrast is the difference in the intensity values of the pixels of an image. Multiplying the intensity values with a constant can make the difference larger or smaller ( if multiplying factor is < 1 ).

matrix1 = np.ones(img_rgb.shape) * .8
matrix2 = np.ones(img_rgb.shape) * 1.2

img_rgb_darker   = np.uint8(cv2.multiply(np.float64(img_rgb), matrix1))
img_rgb_brighter = np.uint8(cv2.multiply(np.float64(img_rgb), matrix2))

What happened? Can you see the weird colors in some areas of the image after multiplication?

The issue is that after multiplying, the values which are already high, are becoming greater than 255. Thus, the overflow issue. How do we overcome this?

img_rgb_higher = np.uint8(np.clip(cv2.multiply(np.float64(img_rgb), matrix2),0,255))

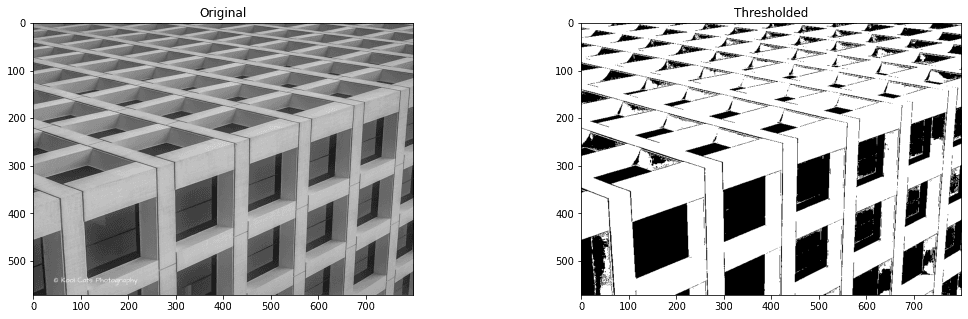

Image thresholding

Binary Images have a lot of use cases in Image Processing. One of the most common use cases is that of creating masks. Image Masks allow us to process on specific parts of an image keeping the other parts intact. Image Thresholding is used to create Binary Images from grayscale images. You can use different thresholds to create different binary images from the same original image.

Function Syntax retval, dst = cv2.threshold( src, thresh, maxval, type[, dst] ) dst: The output array of the same size and type and the same number of channels as src.

The function has 4 required arguments:

src: input array image thresh: threshold value. maxval: maximum value to use with the THRESH_BINARY and THRESH_BINARY_INV thresholding types. type: thresholding type (see ThresholdTypes).

img_read = cv2.imread("building-windows.jpg", cv2.IMREAD_GRAYSCALE)
retval, img_thresh = cv2.threshold(img_read, 100, 255, cv2.THRESH_BINARY)

# Show the images
plt.figure(figsize=[18,5])
plt.subplot(121); plt.imshow(img_read, cmap="gray");         plt.title("Original");
plt.subplot(122); plt.imshow(img_thresh, cmap="gray");       plt.title("Thresholded");

print(img_thresh.shape)

THresholding Tutorial

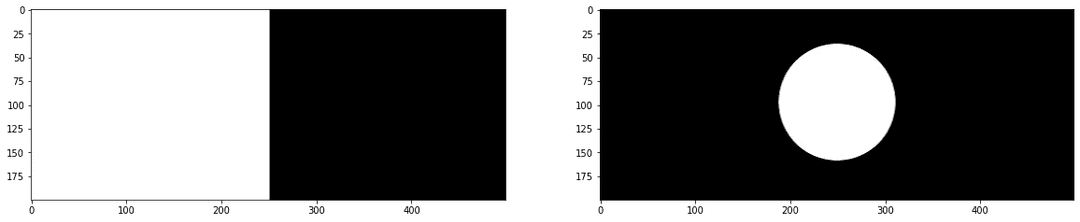

BITWISE operations

Example API for cv2.bitwise_and(). Others include: cv2.bitwise_or(), cv2.bitwise_xor(), cv2.bitwise_not()

img_rec = cv2.imread("rectangle.jpg", cv2.IMREAD_GRAYSCALE)

img_cir = cv2.imread("circle.jpg", cv2.IMREAD_GRAYSCALE)

plt.figure(figsize=[20,5])
plt.subplot(121);plt.imshow(img_rec,cmap='gray')
plt.subplot(122);plt.imshow(img_cir,cmap='gray')
print(img_rec.shape)

Example Bitwise AND Operator

result = cv2.bitwise_and(img_rec, img_cir, mask = None)
plt.imshow(result,cmap='gray')

Courses

This link here covers pretty much everything from numpy and then moves onto OpenCV - NumPy and OpenCV - Course

Follow these youtube playlists:

This covers all necessary concepts on OpenCV

Using OpenCV is something we will be working with a lot so make sure to go through this -

This will cover everything that is required to get started with OpenCV in python-

For further information on OpenCV refer their official website which has the required documentation,tutorials and github repos for OpenCV Home - OpenCV
