Talking Digital

Now that the Arduino has an heads up about the kind of device its dealing with its time we start talking with these devices.

Most of these devices while they can be Input/Output can be also classified as Digital/Analog.

Digital Devices Examples include push buttons/switches that can either be ON(Logic HIGH) or OFF(logic LOW), these devices have discrete set of states in which they can exist.

Analog Devices Examples include LED, Motors, LDR these devices have a continuous set of states in which they can exist. For example an LED can stay turned ON with different amounts of brightness and a motor can be rotating at different speeds based on the control voltage.

NOTE: Some devices can be both digital and analog based on how they are interfaced.

digitalWrite()

Since digital devices usually have only two known states either HIGH(ON) or LOW(OFF), we will be using the digitalWrite() function to either make a pin go HIGH or LOW, therefore turning ON or OFF the external device connected to the Arduino pin.

A pin in its HIGH state is set to 5 Volts, a pin in LOW state has 0 Volts.

NOTE: A pin has to be set to OUTPUT using pinMode() before you can do a digitalWrite() on it

Turning on an LED

void setup(){
    /* LED_BUILTIN is a special keyword for the inbuilt LED connected
    to digital pin 13 on the arduino, it is usually used for debugging */
    pinMode(LED_BUILTIN,OUTPUT); // Setting the LED as an OUTPUT device
}

void loop(){
    digitalWrite(LED_BUILTIN,HIGH); // Turning on the LED by sending it 5V
}

Compile and upload the above sketch, you should see a tiny orange LED near the digital pin 13 light up, congratulations on your first step towards getting to play with digital devices.

NOTE: Upload a new "blank sketch" after your done staring at the LED, if you don't want it to be turned ON forever. Alternatively you can change the HIGH to LOW in the above sketch and upload it as well.

Now that we know how to turn ON an LED, let us go one step further and make it blink (Turn ON and OFF periodically).

The most intuitive way of doing this would be to first turn ON the LED and then turn it OFF and do this in a loop forever, which when translated into code looks like this

Blinking Attempt 1

void setup(){
    // Set the pin (D13) the LED is connected to as OUTPUT
    pinMode(LED_BUILTIN,OUTPUT);
}
void loop(){
    digitalWrite(LED_BUILTIN,HIGH); // Turn the LED ON
    digitalWrite(LED_BUILTIN,LOW); // Turn the LED OFF
}

Compile and upload the above sketch and try to look very closely at the LED you should see it flicker very slightly, just kidding don't strain your eyes too much you won't be able to see it blink unless your Barry Allen, to help normal mortals make sense and visualise digital signals that are usually super fast, humans have invented a few instruments (Logic Analyzers, Oscilloscope). I went ahead and connected a logic analyzer to see exactly what's happening to the LED in the above sketch.

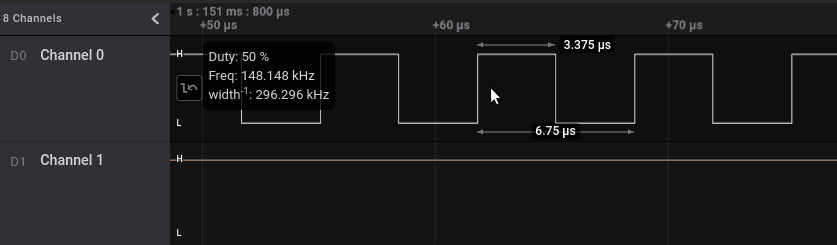

Lo and behold, the LED does blink but it stays on for a mere fraction of 3.375 microseconds and stays off for another 3.375 microseconds, welcome to the world of an Arduino Uno, the ATmega328p thanks to the 16MHz external crystal runs at such incredible speeds due to which it appears like as if the LED has never been turned OFF.

Now that we know whats causing the problem its time we try to fix it.

Bitsian Standard Time - (BST)

Bitsian Lore While the whole of India follows the India Standard Time, we Bitsians unfortunately take pride in following the Bitsian Standard Time which basically is a time zone that runs anywhere from 10 to 40 minutes behind the IST. Most event timings during fests are not inclusive of BST due to which participants from other colleges often think the events are delayed, if only there were as lite as we are.

delay()

In great pride, lets meet the next function delay() which is like the Bitsian Standard Time equivalent in the world of Arduino, while it does cause delays it isn't as unpredictable as we bitsians are.

delay() Pauses the program for the amount of time (in milliseconds) specified as parameter. (There are 1000 milliseconds in a second.)

Lets use the delay() function to stall the arduino for a second after and before changing the state of the LED.

Blink Attempt 2

void setup(){
    pinMode(LED_BUILTIN,OUTPUT);
}
void loop(){
    digitalWrite(LED_BUILTIN,HIGH);//turn ON the LED
    delay(1000); // Do nothing for 1 second
    digitalWrite(LED_BUILTIN,LOW); // turn OFF the LED
    delay(1000); // Do nothing for 1 second
}

Compile and upload the above sketch and viola, you should now finally have an blinking LED.

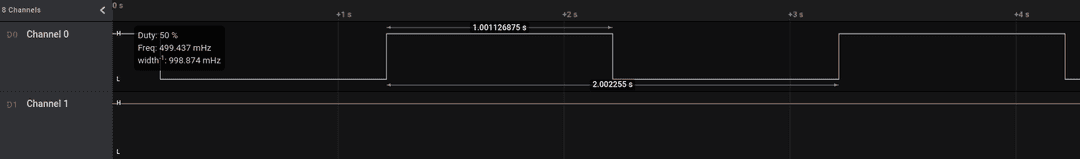

The above code in a logic analyzer looks like the following

As we can see the LED is on for almost a second, while not exact its close enough.

NOTE: Using delay() will cause your Arduino to sit idle for the specified amount of time without doing anything, which might be fine if our only intention is to blink an LED, but the use of delay should be avoided if we want the arduino to perform multiple tasks

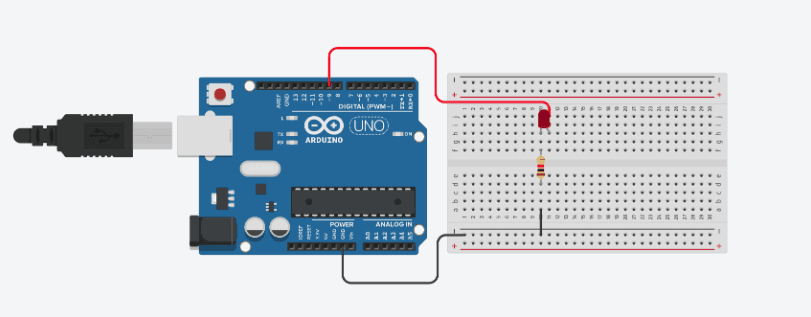

Building your first Arduino Circuit : Blinking an LED

Now that you have gained a basic understanding of digital and analog pins, let's build a simple circuit using an Arduino. For this circuit, we will be using an Arduino, a LED, and a resistor. The circuit connection looks as below :

The code of this circuit is :

void setup()
{
  pinMode(9, OUTPUT);//Declaring the mode of pin
}

void loop()
{
  digitalWrite(9, HIGH);//Providing 5V
  delay(1000); // Wait for 1000 millisecond(s)
  digitalWrite(9, LOW);//Providing 0V
  delay(1000); // Wait for 1000 millisecond(s)
}

By the above circuit connection and the usage of the above code, the LED will blink until the Arduino is given power.

There maybe a lot in the above code that you might not understand at present, but still try to copy the code and replicate the circuit and run the simulation. This will help you grasp the concepts better in the later sessions.

Getting To Know Your Digital Companion

digitalRead()

digitalRead() function is used to read the logic state at a pin. It is capable of telling us whether the voltage at a pin is 5V or 0V, or in other words, if the pin is at logic state 1 (HIGH) or 0 (LOW).

NOTE: A pin has to be set to INPUT using pinMode() before you can do a digitalRead() on it.

Take a look at the following code to understand better

int ledPin = 13;  // LED connected to digital pin 13
int inPin = 7;    // pushbutton connected to digital pin 7
int val = 0;      // variable to store the read value

void setup() {
  pinMode(ledPin, OUTPUT);  // sets the digital pin 13 as output
  pinMode(inPin, INPUT);    // sets the digital pin 7 as input
}

void loop() {
  val = digitalRead(inPin);   // read the input pin
  digitalWrite(ledPin, val);  // sets the LED to the button's value
}

The IR Module

The IR sensor (or Infrared sensor) is an electronic device that senses objects around it by emitting light, which usually in the infrared spectrum. It is also capable of measuring the heat radiated by an object and can sense motion.

Working principle of IR Module

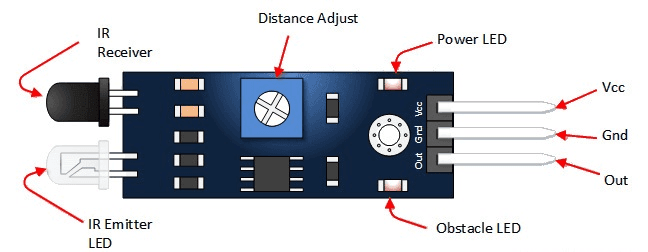

An IR sensor consists of two parts, the emitter circuit and the receiver circuit. This is collectively known as a photo-coupler or an optocoupler.

The emitter is an IR LED and the detector is an IR photodiode. The IR phototdiode is sensitive to the IR light emitted by an IR LED. The photo-diode’s resistance and output voltage change in proportion to the IR light received. This is the underlying working principle of the IR sensor. When the IR transmitter emits radiation, it reaches the object and some of the radiation reflects back to the IR receiver. Based on the intensity of the reception by the IR receiver, the output of the sensor is defined.

Distinguishing Between Black and White Colors:

It is universal that black color absorbs the entire radiation incident on it and white color reflects the entire radiation incident on it. Based on this principle, the second positioning of the sensor couple can be made. The IR LED and the photodiode are placed side by side. When the IR transmitter emits infrared radiation, since there is no direct line of contact between the transmitter and receiver, the emitted radiation must reflect back to the photodiode after hitting any object. The surface of the object can be divided into two types: reflective surface and non-reflective surface. If the surface of the object is reflective in nature i.e. it is white or other light color, most of the radiation incident on it will get reflected back and reaches the photodiode. Depending on the intensity of the radiation reflected back, current flows in the photodiode.

If the surface of the object is non-reflective in nature i.e. it is black or other dark color, it absorbs almost all the radiation incident on it. As there is no reflected radiation, there is no radiation incident on the photodiode and the resistance of the photodiode remains higher allowing no current to flow. This situation is similar to there being no object at all.

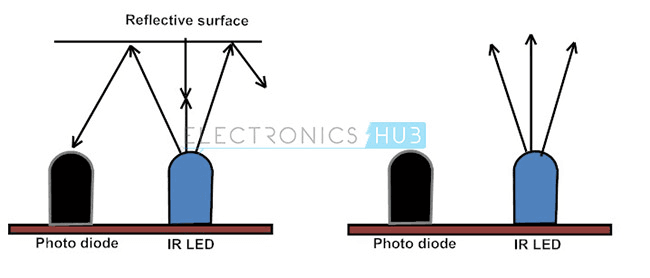

The pictorial representation of the above scenarios is shown below

Pins description

Pin Name	Description
VCC	Power Supply Input
GND	Power Supply Ground
OUT	Digital Output

Interfacing with Arduino

We shall now take a look at how we can use the IR sensor with an Arduino Uno and better understand the digitalRead() function.

Connections:

Connect VCC of IR sensor to the 5V pin of Arduino Uno
Connect GND of IR sensor to the GND pin of Arduino Uno
Connect OUT pin of IR sensor to any digital pin on the Uno board. In the demonstration, we will be connecting it to digital pin 6.

Code:

void setup()
{
  pinMode(13,OUTPUT); // pin 13 on Uno set as output
  pinMode(6,INPUT); // pin 6 on Uno set as input
}
void loop()
{
  if(digitalRead(6) == LOW) // if pin 6 reads low
  {
    digitalWrite(13,HIGH); // LED connected to digital pin 13 turns ON
    delay(10); // delay time
  }
  else  // if pin 6 reads high
  {
    digitalWrite(13,LOW); // LED connected to digital pin 13 turns OFF
    delay(10); // delay time
  }
}

The digitalRead() function is used to read the state of pin 6 and performs the desired function based on the state of this pin.

If digitalRead() reads LOW from the pin, pin 13 on the Uno is set to high, which turns ON the onboard LED.
If digitalRead() reads HIGH from the pin, pin 13 on the Uno is set to low, which turns OFF the onboard LED.

PWM

By now you must be fairly familiar with GPIO pins (Digital and Analog pins). Now let’s discuss about PWM and a special set of Digital pins, called PWM pins.

Pulse Width Modulation, or PWM, is a technique for getting analog results with digital means.
Digital control is used to create a square wave, a signal switched between on and off. This on-off pattern can simulate voltages in between the full Vcc of the board (e.g., 5 V on Uno, 3.3 V on a MKR board) and off (0 Volts) by changing the portion of the time the signal spends on versus the time that the signal spends off.
The duration of "on time" is called the pulse width. To get varying analog values, you change, or modulate, that pulse width.
If you repeat this on-off pattern fast enough with an LED for example, the result is as if the signal is a steady voltage between 0 and Vcc controlling the brightness of the LED.

Duty Cycle

When the Arduino sends a $5V$ signal we can call it “on time”. Now Duty Cycle is defined as the ratio of on time by total time :

Duty Cycle = t_ON/(t_ON+t_OFF)

The Average voltage is :

V_average = $5V$ X Duty Cycle

Thus, Duty Cycle specifically describes the percentage of time a digital signal in ON (5V) over an interval or period of time.

PWM Pins

PWM pins are special-purpose Digital pins that are capable of sending voltage signals between $0V$ and $5V$ too.

Let us consider a simple circuit consisting of an LED, a resistor, a pushbutton, and an Arduino. When the pushbutton is pressed, the LED turns ON because it receives a 5V voltage. When the pushbutton is released, the LED turns OFF because it does not receive any voltage as the circuit is broken, or in other words, it receives 0V. This is demonstrated below using an oscilloscope.

When pushbutton is pressed, 5V output

When pushbutton is released, 0V output

Now let's say you want to control the brightness of the LED instead of having a simple ON-OFF circuit. This can be achieved using the PWM pins on the Arduino, by varying the portion of time for which the signal stays ON (5V) versus the time for which the signal stays OFF (0V). This is demonstrated below using an oscilloscope.

Where are they present on the Arduino?

Identifying a PWM pin is an easy task. There are 6 PWM pins in total in an Arduino (3,5,6,9,10,11). If we observe we can see that the above-mentioned pins are accompanied by a ‘~’ symbol. This is the indication saying that a particular pin is a PWM pin. See the picture below :

Sending Analog Signals using PWM pins

For usage purposes, the PWM pins are of $8-bit$ resolution is used. In this, voltages varying between $0V$ to $5V$ are divided into 256 (2⁸, hence $8-bit$ resolution) parts, such that $0V$ is $0$ and $5V$ is $255$ . Using this we can send analog signals through PWM pins. As to how we do that will be covered in the upcoming topics.

For further clarity on PWM check out this video.

The Ancient Art of Analog

analogRead()

Description

analogRead() is an inbuilt function in the Arduino IDE which takes the name of the analog pin to be read as its parameter and reads the value of that specified analog pin. This is facilitated by a built in 10-bit ADC(Analog to Digital Convertor). The Analog pins on the Arduino UNO are shown in the diagram below.

What is an ADC?

An ADC converts an analog signal picked up by the pin to a digital signal which can further be processed by the microcontroller. The input signals are stored electronically in binary within the ADC.The conversion is achieved by quantising the input signal into discrete values. The resolution of an ADC indicates the number of discrete values it can produce over the allowed range of analog input values. The Arduino UNO is equipped with a 10-bit analog to digital converter. This means that it will map input voltages between 0 and 5V into integer values between 0 and 1023. This yields a resolution between readings of: 5 volts / 1024 units or, 0.0049 volts (4.9 mV) per unit.

Syntax

analogRead(analogPin)

Parameter: The name of the analog input pin to read from. The analog pins vary from board to board. In the case of the Arduino UNO it is from A0 to A5.

Return Value: It returns the analog reading of the pin

Code:

int analogPin = A2; // A2 chosen as analog pin
int val = 0; // variable initialized to store analog read

void setup(){
    pinMode(analogPin, INPUT);
    Serial.begin(9600);
}

void loop()
{
    val = analogRead(analogPin);
    Serial.println(val);
    delay(500);
}

Watch this video for a better understanding - Video

LDR - An analog sensor

A Light Dependent Resistor (a.k.a photoresistor or LDR) is a device whose resistivity varies with the incident electromagnetic radiation. Hence, they are light-sensitive devices. Also called photoconductors photoconductive cells or simply photocells. When the light of enough energy falls on it, the number of electrons available for the conduction increases proportional to the intensity of light

Follow these resources for a circuit diagram and a better understanding.

Video

Project using LDR, LED and Arduino

int ldr = A0; // Set A0 (analog input) for LDR
int value = 0;

void setup(){
    pinMode(3, OUTPUT);
    Serial.begin(9600);
}

void loop()
{
    value = analogRead(ldr); // Reads the value of LDR
    Serial.print("LDR Value is: "); // Prints the value of LDR to Serial Monitor
    Serial.println(value);

    if(value < 200)
    {
        digitalWrite(3, HIGH); // Makes the LED glow in dark
    }
    else
    {
        digitalWrite(3, LOW); // Turns the LED OFF in light
    }
}

analogWrite()

Description

analogRead is an inbuilt function in the Arduino IDE which takes the name of the analog pin to which an analog value has to be written as its parameter and a duty cycle which takes values between 0 and 255.

Parameters

The Arduino pin to write to
The Duty Cycle between 0 and 255

Return Value

There is no return value

Syntax

int ledPin = 9; // LED connected to digital pin 9
int analogPin = 3; // potentiometer connected to analog pin 3
int val = 0; // variable to store the read value

void setup(){
    pinMode(ledPin, OUTPUT); // sets the pin as output
}

void loop(){
    val = analogRead(analogPin); // read the input pin
    analogWrite(ledPin, val / 4); // analogRead values go from 0 to 1023, analogWrite values from 0 to 255
}

You can read more about this function here. Also, you can watch this video for a better understanding.

Dimming an LED using analogWrite()

int brightness = 0;

void setup(){
    pinMode(9, OUTPUT);
}

void loop()
{
    // increase brightness from 0 to 255
    for (brightness = 0; brightness <= 255; brightness += 5)
    {
        analogWrite(9, brightness);
        delay(30);
    }
    // decrease brightness from 255 to 0
    for (brightness = 255; brightness >= 0; brightness -= 5)
    {
        analogWrite(9, brightness);
        delay(30);
    }
}

Motors and Motor Drivers

About

In everyday life, we see rotating devices like a drill, wheels in a vehicle, and a fan that make our tasks easier because their ability to "turn" helps in these cases. But what is the cause that drives them to turn? Well, this cannot be the sole job of electrical or manual work but is a combined effort of certain laws that lead to an electric motor's principle.

Other types of Motors

1) Servo Motor

2) Stepper Motor

H-Bridge

The direction in which the motor rotates is expected to change depending on the situation and this cannot be always manually changed. Here comes the role of a H-Bridge which enables the change in direction of the motor by changing the state of the switches in its circuit which can be accomplished by logical HIGH or LOW to the respective switch.

It is evident from the above diagram about the way in which this works. When S1 and S4 are closed (S2 and S3 being open), the motor rotates in one direction while on closing S2 and S3 (keeping S1 and S4 open) the motor turns in the other direction.

This above diagram shows shorting of circuit which may lead to the burning of H-Bridge.

Also it is not advisable to drive the motor and change the direction at the same time.

Motor Driver

A motor driver at a basic level is an integrated circuit chip used to control a motor as per given instructions with the help of H Bridge topology in the case of the L293D.

Well, lets break this down and look into it closely one at a time.

Why do we need a motor driver?

In the world of autonomous technology, we would require efficient communication between microcontrollers like the arduino and a motor which draws a huge amount of current to work at the desired rate. Meanwhile, micro controllers operate on low level voltage/current (Eg: Arduino has an operating voltage of 5V).
Thus, to bridge this gap of power output from the arduino to the motor, a motor driver can act as the interface taking in the low current signals from the Arduino and converting them into higher current signals which can help drive the motor as required.
Thus, we can control the speed and direction of rotation of motor based on voltage provided.

The L293D motor driver

We will now specifically look into the L293D

It is a commonly used and a popular 16 pin motor driver IC.
It is capable of running 2 motors at the same time and works on the principle of a H Bridge.

Working principle

The IC works on the principle of H-Bridge (this can be understood on checking how the IC conveys signals to the motor).

As we see, VCC2 is the pin that drives the motor at its required voltage and VCC1 is for charging the 16-pin IC which is connected to the Arduino 5V pin. One important point is that whenever there are any components in a project, we need to provide a common ground to them. Same is the case here, all the ground pins in the circuit are to be connected with the GND pin of the Arduino.
It should also be noted that the enable pins are going to control the speed of the rotation through the PWM signals (Pulse width modulation) which can be established by connecting them to the PWM digital pins on Arduino.

Reference

Using L293D with motors and Arduino

Code

int dirR1 = 11;
int dirR2 = 10;
int dirL1 = 9;
int dirL2 = 6;
int mSpeedL = 250;
int mSpeedL1 = 0;
int mSpeedR = 250;
int mSpeedR1 =0;
int dt=1000; // delay time

void setup()
{
  Serial.begin(9600);

// set pinMode for all pins
  pinMode(dirR1, OUTPUT);
  pinMode(dirR2, OUTPUT);
  pinMode(dirL1, OUTPUT);
  pinMode(dirL2, OUTPUT);
}

void loop()
{
  analogWrite(dirR1,mSpeedR);
  analogWrite(dirR2,mSpeedR2);
  analogWrite(dirL1,mSpeedL);
  analogWrite(dirL2,mSpeedL2);

  delay(dt); // set delay time
 }

Servo

About

A servo motor is a type of motor that can rotate with great precision. Normally this type of motor consists of a control circuit that provides feedback on the current position of the motor shaft, this feedback allows the servo motors to rotate with great precision. If you want to rotate an object at some specific angles or distance, then you use a servo motor

It has 3 pins, 1. Power, 2. Ground and 3. Signal

This is a simple Servo Arduino code, that takes input from a potentiometer which gives you input between 0 and 1023 since it's an analogRead. Then we scale down 1024 to 180 and give the servo an angle at which it should rotate to

Knob

#include <Servo.h>

Servo myservo;  // create servo object to control a servo

int potpin = 0;  // analog pin used to connect the potentiometer
int val;    // variable to read the value from the analog pin

void setup() {
  myservo.attach(9);  // attaches the servo on pin 9 to the servo object
}

void loop() {
  val = analogRead(potpin);            // reads the value of the potentiometer (value between 0 and 1023)
  val = map(val, 0, 1023, 0, 180);     // scale it to use it with the servo (value between 0 and 180)
  myservo.write(val);                  // sets the servo position according to the scaled value
  delay(15);                           // waits for the servo to get there
}

Sweep

You can also make it move through the 180 degrees

#include <Servo.h>

Servo myservo;  // create servo object to control a servo
// twelve servo objects can be created on most boards

int pos = 0;    // variable to store the servo position

void setup() {
  myservo.attach(9);  // attaches the servo on pin 9 to the servo object
}

void loop() {
  for (pos = 0; pos <= 180; pos += 1) { // goes from 0 degrees to 180 degrees
    // in steps of 1 degree
    myservo.write(pos);              // tell servo to go to position in variable 'pos'
    delay(15);                       // waits 15ms for the servo to reach the position
  }
  for (pos = 180; pos >= 0; pos -= 1) { // goes from 180 degrees to 0 degrees
    myservo.write(pos);              // tell servo to go to position in variable 'pos'
    delay(15);                       // waits 15ms for the servo to reach the position
  }
}

Ultrasonic Sensor HC-SR04

About

The HC-SR04 ultrasonic sensor is used to calculate the distance of an obstacle in the path of the bot. It consists of four pins: VCC, trigger, echo & ground. It also includes a transmitter and receiver, which transmit and receive the US signals, respectively.

Working Principle

The HC-SR04 sensor detects the travel time of a signal from transmission till it's received. The sensor sends out a ping, and an echo is heard. The duration of travel of the signal is then measured by the sensor. When the Trig pin of the sensor receives a pulse of HIGH for at least 10 microseconds, it will initiate the sensor, which will transmit out 8 cycles of ultrasonic burst and wait for the reflected ultrasonic burst. When the sensor detects US signals from the receiver, it will set the Echo pin to HIGH and delay for a period proportional to distance.

The sensor transmits 8 cycles of ultrasonic bursts since the receiver needs to hear enough cycles to reach its full output and set the Echo pin to HIGH.

Pins Description

VCC: This powers the sensor with +5V and is connected to the 5V supply of the Arduino.
Trigger: It is an Input pin. It is connected to any digital pin on the Arduino. On sending a HIGH signal to this pin, the transmitter sends out US signals until a LOW signal is sent.
Echo: It is an Output pin. It is connected to any digital pin on the Arduino. This pin goes HIGH for the duration equal to the time taken by the receiver to receive US signals after being transmitted.
Ground: This pin is connected to the ground of the Arduino.

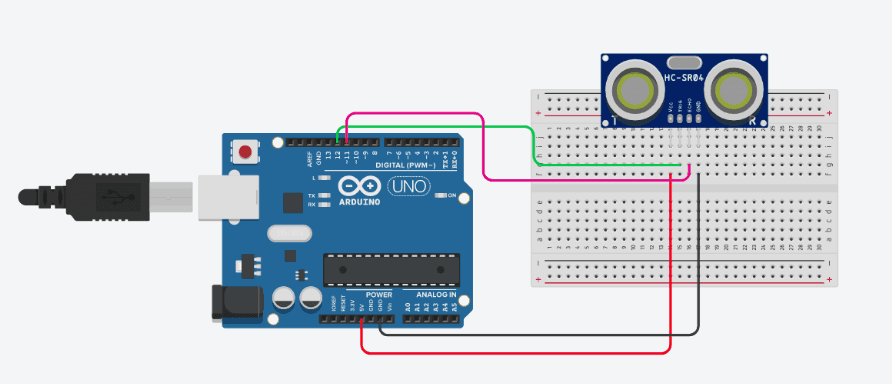

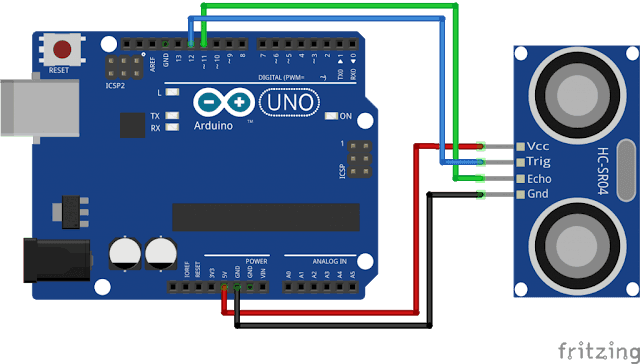

The following image shows the connection of the terminals of the sensor to the Arduino:

Reference You can also refer to the datasheet for more information.

Distance Calculation

As described earlier, the HC-SR04 sensor sends out ultrasonic signals and receives the echo, then measures the pingTimeTravel of the signal.

We know, $Speed = Distance \hspace{0.1cm} / \hspace{0.1cm}Time$

Sound waves travel at a speed of about $340 m/s$ at room temperature. $\therefore Speed = 340 m/s$

The time given by HC-SR04 is in microseconds. We need to divide the time by 2 since this is the time taken by the sound waves from the transmitter to the object back to the receiver.

Thus, the formula becomes, $Distance = 340 * (pingTravelTime / 2)$

You can watch the following videos to understand better:

Code

int trigPin = 12; // connect trig pin of HC-SR04
int echoPin = 11; // connect echo pin of HC-SR04
int pingTravelTime; // initialize variable

void setup() {
    pinMode(trigPin,OUTPUT); // trig pin set as OUTPUT
    pinMode(echoPin,INPUT); // echo pin set as INPUT
    Serial.begin(9600);
}

void loop() {
    digitalWrite(trigPin,LOW); // trig pin set to low
    delayMicroseconds(10); // delay time in microseconds

    digitalWrite(trigPin,HIGH); // trig pin set to high
    delayMicroseconds(10); // delay time in microseconds
    digitalWrite(trigPin,LOW); // trig pin set to low

    pingTravelTime = pulseIn(echoPin,HIGH); // pulseIn() function explained below
    delay(25); // delay time
    Serial.println(pingTravelTime); // print pingTravelTime on Serial Monitor
}

pulseIn() Function

The pulseIn() function measures the time period of either HIGH or LOW pulse input signal. The syntax of pulseIn() function is: pulseIn(pin, value)

pin: the number of the pin on which the pulse is to be read.
value: the value of the pulse, either HIGH or LOW.

In the above code, the pin is the echoPin, and the value is HIGH, i.e. the function measures the time period of the HIGH pulse input signal on the echoPin.

Hence it indirectly measures the travel time of the signal. Thus the pingTimeTravel can be calculated using the pulseIn() function.
