Talking Digital

Now that the Arduino has an heads up about the kind of device its dealing with its time we start talking with these devices.

Most of these devices while they can be Input/Output can be also classified as Digital/Analog.

Digital Devices Examples include push buttons/switches that can either be ON(Logic HIGH) or OFF(logic LOW), these devices have discrete set of states in which they can exist.

Analog Devices Examples include LED, Motors, LDR these devices have a continuous set of states in which they can exist. For example an LED can stay turned ON with different amounts of brightness and a motor can be rotating at different speeds based on the control voltage.

NOTE: Some devices can be both digital and analog based on how they are interfaced.

digitalWrite()

Since digital devices usually have only two known states either HIGH(ON) or LOW(OFF), we will be using the digitalWrite() function to either make a pin go HIGH or LOW, therefore turning ON or OFF the external device connected to the Arduino pin.

A pin in its HIGH state is set to 5 Volts, a pin in LOW state has 0 Volts.

NOTE: A pin has to be set to OUTPUT using pinMode() before you can do a digitalWrite() on it

Turning on an LED

void setup(){
    /* LED_BUILTIN is a special keyword for the inbuilt LED connected
    to digital pin 13 on the arduino, it is usually used for debugging */
    pinMode(LED_BUILTIN,OUTPUT); // Setting the LED as an OUTPUT device
}

void loop(){
    digitalWrite(LED_BUILTIN,HIGH); // Turning on the LED by sending it 5V
}

Compile and upload the above sketch, you should see a tiny orange LED near the digital pin 13 light up, congratulations on your first step towards getting to play with digital devices.

NOTE: Upload a new "blank sketch" after your done staring at the LED, if you don't want it to be turned ON forever. Alternatively you can change the HIGH to LOW in the above sketch and upload it as well.

Now that we know how to turn ON an LED, let us go one step further and make it blink (Turn ON and OFF periodically).

The most intuitive way of doing this would be to first turn ON the LED and then turn it OFF and do this in a loop forever, which when translated into code looks like this

Blinking Attempt 1

void setup(){
    // Set the pin (D13) the LED is connected to as OUTPUT
    pinMode(LED_BUILTIN,OUTPUT);
}
void loop(){
    digitalWrite(LED_BUILTIN,HIGH); // Turn the LED ON
    digitalWrite(LED_BUILTIN,LOW); // Turn the LED OFF
}

Compile and upload the above sketch and try to look very closely at the LED you should see it flicker very slightly, just kidding don't strain your eyes too much you won't be able to see it blink unless your Barry Allen, to help normal mortals make sense and visualise digital signals that are usually super fast, humans have invented a few instruments (Logic Analyzers, Oscilloscope). I went ahead and connected a logic analyzer to see exactly what's happening to the LED in the above sketch.

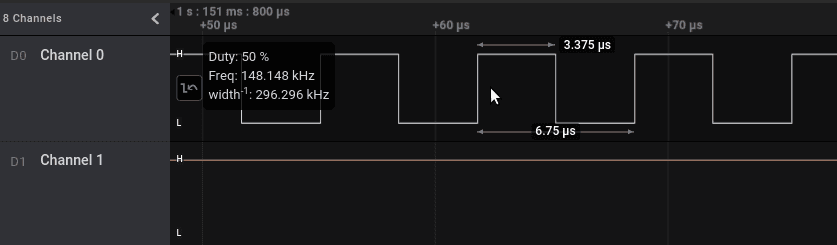

Lo and behold, the LED does blink but it stays on for a mere fraction of 3.375 microseconds and stays off for another 3.375 microseconds, welcome to the world of an Arduino Uno, the ATmega328p thanks to the 16MHz external crystal runs at such incredible speeds due to which it appears like as if the LED has never been turned OFF.

Now that we know whats causing the problem its time we try to fix it.

Bitsian Standard Time - (BST)

Bitsian Lore While the whole of India follows the India Standard Time, we Bitsians unfortunately take pride in following the Bitsian Standard Time which basically is a time zone that runs anywhere from 10 to 40 minutes behind the IST. Most event timings during fests are not inclusive of BST due to which participants from other colleges often think the events are delayed, if only there were as lite as we are.

delay()

In great pride, lets meet the next function delay() which is like the Bitsian Standard Time equivalent in the world of Arduino, while it does cause delays it isn't as unpredictable as we bitsians are.

delay() Pauses the program for the amount of time (in milliseconds) specified as parameter. (There are 1000 milliseconds in a second.)

Lets use the delay() function to stall the arduino for a second after and before changing the state of the LED.

Blink Attempt 2

void setup(){
    pinMode(LED_BUILTIN,OUTPUT);
}
void loop(){
    digitalWrite(LED_BUILTIN,HIGH);//turn ON the LED
    delay(1000); // Do nothing for 1 second
    digitalWrite(LED_BUILTIN,LOW); // turn OFF the LED
    delay(1000); // Do nothing for 1 second
}

Compile and upload the above sketch and viola, you should now finally have an blinking LED.

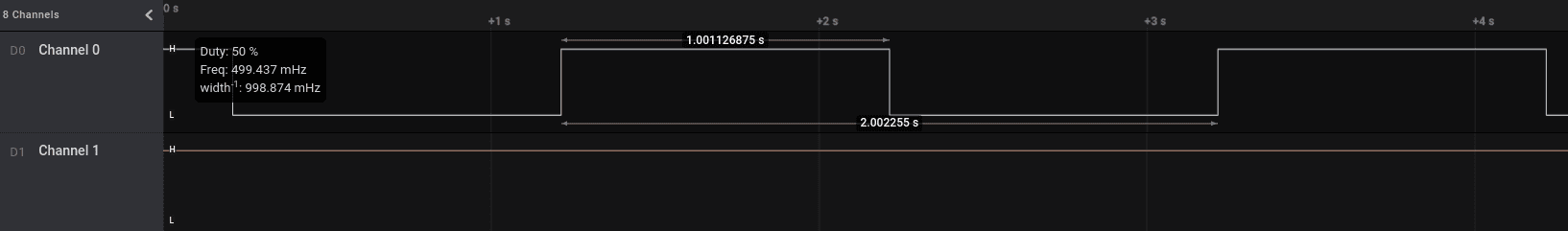

The above code in a logic analyzer looks like the following

As we can see the LED is on for almost a second, while not exact its close enough.

NOTE: Using delay() will cause your Arduino to sit idle for the specified amount of time without doing anything, which might be fine if our only intention is to blink an LED, but the use of delay should be avoided if we want the arduino to perform ple tasks

Building your first Arduino Circuit : Blinking an LED

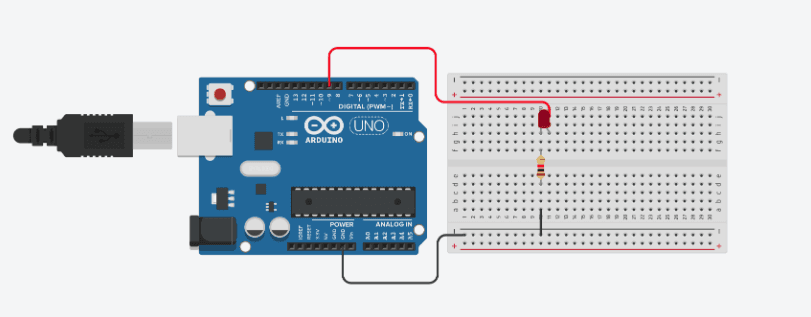

Now that you have gained a basic understanding of digital and analog pins, let's build a simple circuit using an Arduino. For this circuit, we will be using an Arduino, a LED, and a resistor. The circuit connection looks as below :

The code of this circuit is :

void setup()
{
  pinMode(9, OUTPUT);//Declaring the mode of pin
}

void loop()
{
  digitalWrite(9, HIGH);//Providing 5V
  delay(1000); // Wait for 1000 millisecond(s)
  digitalWrite(9, LOW);//Providing 0V
  delay(1000); // Wait for 1000 millisecond(s)
}

By the above circuit connection and the usage of the above code, the LED will blink until the Arduino is given power.

There maybe a lot in the above code that you might not understand at present, but still try to copy the code and replicate the circuit and run the simulation. This will help you grasp the concepts better in the later sessions.

Getting To Know Your Digital Companion

digitalRead()

digitalRead() function is used to read the logic state at a pin. It is capable of telling us whether the voltage at a pin is 5V or 0V, or in other words, if the pin is at logic state 1 (HIGH) or 0 (LOW).

NOTE: A pin has to be set to INPUT using pinMode() before you can do a digitalRead() on it.

Take a look at the following code to understand better

int ledPin = 13;  // LED connected to digital pin 13
int inPin = 7;    // pushbutton connected to digital pin 7
int val = 0;      // variable to store the read value

void setup() {
  pinMode(ledPin, OUTPUT);  // sets the digital pin 13 as output
  pinMode(inPin, INPUT);    // sets the digital pin 7 as input
}

void loop() {
  val = digitalRead(inPin);   // read the input pin
  digitalWrite(ledPin, val);  // sets the LED to the button's value
}

The IR Module

The IR sensor (or Infrared sensor) is an electronic device that senses objects around it by emitting light, which usually in the infrared spectrum. It is also capable of measuring the heat radiated by an object and can sense motion.

Working principle of IR Module

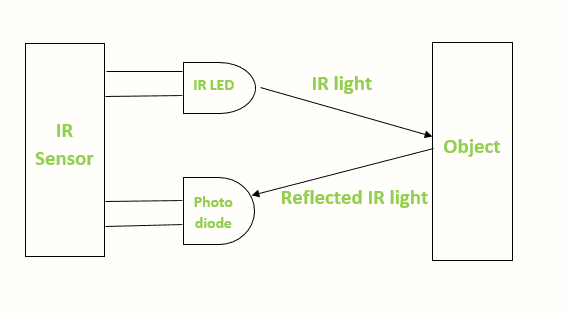

An IR sensor consists of two parts, the emitter circuit and the receiver circuit. This is collectively known as a photo-coupler or an optocoupler.

The emitter is an IR LED and the detector is an IR photodiode. The IR phototdiode is sensitive to the IR light emitted by an IR LED. The photo-diode’s resistance and output voltage change in proportion to the IR light received. This is the underlying working principle of the IR sensor. When the IR transmitter emits radiation, it reaches the object and some of the radiation reflects back to the IR receiver. Based on the intensity of the reception by the IR receiver, the output of the sensor is defined.

Distinguishing Between Black and White Colors:

It is universal that black color absorbs the entire radiation incident on it and white color reflects the entire radiation incident on it. Based on this principle, the second positioning of the sensor couple can be made. The IR LED and the photodiode are placed side by side. When the IR transmitter emits infrared radiation, since there is no direct line of contact between the transmitter and receiver, the emitted radiation must reflect back to the photodiode after hitting any object. The surface of the object can be divided into two types: reflective surface and non-reflective surface. If the surface of the object is reflective in nature i.e. it is white or other light color, most of the radiation incident on it will get reflected back and reaches the photodiode. Depending on the intensity of the radiation reflected back, current flows in the photodiode.

If the surface of the object is non-reflective in nature i.e. it is black or other dark color, it absorbs almost all the radiation incident on it. As there is no reflected radiation, there is no radiation incident on the photodiode and the resistance of the photodiode remains higher allowing no current to flow. This situation is similar to there being no object at all.

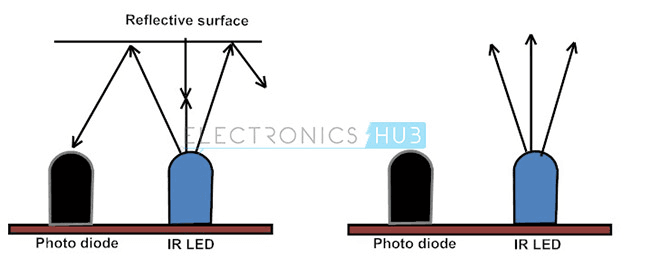

The pictorial representation of the above scenarios is shown below

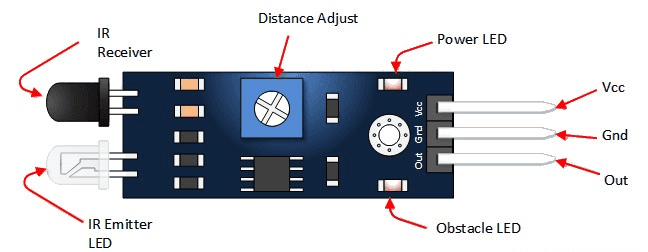

Pins description

Interfacing with Arduino

We shall now take a look at how we can use the IR sensor with an Arduino Uno and better understand the digitalRead() function.

Connections:

1. Connect VCC of IR sensor to the 5V pin of Arduino Uno
2. Connect GND of IR sensor to the GND pin of Arduino Uno
3. Connect OUT pin of IR sensor to any digital pin on the Uno board. In the demonstration, we will be connecting it to digital pin 6.

Code:

void setup()
{
  pinMode(13,OUTPUT); // pin 13 on Uno set as output
  pinMode(6,INPUT); // pin 6 on Uno set as input
}
void loop()
{
  if(digitalRead(6) == LOW) // if pin 6 reads low
  {
    digitalWrite(13,HIGH); // LED connected to digital pin 13 turns ON
    delay(10); // delay time
  }
  else  // if pin 6 reads high
  {
    digitalWrite(13,LOW); // LED connected to digital pin 13 turns OFF
    delay(10); // delay time
  }
}

The digitalRead() function is used to read the state of pin 6 and performs the desired function based on the state of this pin.

• If digitalRead() reads LOW from the pin, pin 13 on the Uno is set to high, which turns ON the onboard LED.
• If digitalRead() reads HIGH from the pin, pin 13 on the Uno is set to low, which turns OFF the onboard LED.

PWM

By now you must be fairly familiar with GPIO pins (Digital and Analog pins). Now let’s discuss about PWM and a special set of Digital pins, called PWM pins.

• Pulse Width Modulation, or PWM, is a technique for getting analog results with digital means.
• Digital control is used to create a square wave, a signal switched between on and off. This on-off pattern can simulate voltages in between the full Vcc of the board (e.g., 5 V on Uno, 3.3 V on a MKR board) and off (0 Volts) by changing the portion of the time the signal spends on versus the time that the signal spends off.
• The duration of "on time" is called the pulse width. To get varying analog values, you change, or modulate, that pulse width.
• If you repeat this on-off pattern fast enough with an LED for example, the result is as if the signal is a steady voltage between 0 and Vcc controlling the brightness of the LED.

Duty Cycle

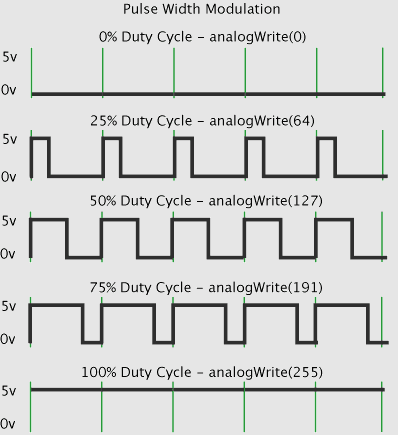

When the Arduino sends a $5V$ signal we can call it “on time”. Now Duty Cycle is defined as the ratio of on time by total time :

Duty Cycle = t_ON/(t_ON+t_OFF)

The Average voltage is :

V_average = $5V$ X Duty Cycle

Thus, Duty Cycle specifically describes the percentage of time a digital signal in ON (5V) over an interval or period of time.

PWM Pins

PWM pins are special-purpose Digital pins that are capable of sending voltage signals between $0V$ and $5V$ too.

Let us consider a simple circuit consisting of an LED, a resistor, a pushbutton, and an Arduino. When the pushbutton is pressed, the LED turns ON because it receives a 5V voltage. When the pushbutton is released, the LED turns OFF because it does not receive any voltage as the circuit is broken, or in other words, it receives 0V. This is demonstrated below using an oscilloscope.

When pushbutton is pressed, 5V output

When pushbutton is released, 0V output

Now let's say you want to control the brightness of the LED instead of having a simple ON-OFF circuit. This can be achieved using the PWM pins on the Arduino, by varying the portion of time for which the signal stays ON (5V) versus the time for which the signal stays OFF (0V). This is demonstrated below using an oscilloscope.

Where are they present on the Arduino?

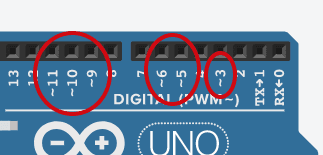

Identifying a PWM pin is an easy task. There are 6 PWM pins in total in an Arduino (3,5,6,9,10,11). If we observe we can see that the above-mentioned pins are accompanied by a ‘~’ symbol. This is the indication saying that a particular pin is a PWM pin. See the picture below :

Sending Analog Signals using PWM pins

For usage purposes, the PWM pins are of $8-bit$ resolution is used. In this, voltages varying between $0V$to $5V$ are divided into 256 (2⁸, hence $8-bit$ resolution) parts, such that $0V$ is $0$ and $5V$ is $255$. Using this we can send analog signals through PWM pins. As to how we do that will be covered in the upcoming topics.

For further clarity on PWM check out this video.

The Ancient Art of Analog

analogRead()

Description

analogRead() is an inbuilt function in the Arduino IDE which takes the name of the analog pin to be read as its parameter and reads the value of that specified analog pin. This is facilitated by a built in 10-bit ADC(Analog to Digital Convertor). The Analog pins on the Arduino UNO are shown in the diagram below.

Syntax

analogRead(analogPin)

Parameter: The name of the analog input pin to read from. The analog pins vary from board to board. In the case of the Arduino UNO it is from A0 to A5.

Return Value: It returns the analog reading of the pin

Code:

int analogPin = A2; // A2 chosen as analog pin
int val = 0; // variable initialized to store analog read

void setup(){
    pinMode(analogPin, INPUT);
    Serial.begin(9600);
}

void loop()
{
    val = analogRead(analogPin);
    Serial.println(val);
    delay(500);
}

Watch this video for a better understanding - Video

LDR - An analog sensor

A Light Dependent Resistor (a.k.a photoresistor or LDR) is a device whose resistivity varies with the incident electromagnetic radiation. Hence, they are light-sensitive devices. Also called photoconductors photoconductive cells or simply photocells. When the light of enough energy falls on it, the number of electrons available for the conduction increases proportional to the intensity of light

Follow these resources for a circuit diagram and a better understanding.

Project using LDR, LED and Arduino

int ldr = A0; // Set A0 (analog input) for LDR
int value = 0;

void setup(){
    pinMode(3, OUTPUT);
    Serial.begin(9600);
}

void loop()
{
    value = analogRead(ldr); // Reads the value of LDR
    Serial.print("LDR Value is: "); // Prints the value of LDR to Serial Monitor
    Serial.println(value);

    if(value < 200)
    {
        digitalWrite(3, HIGH); // Makes the LED glow in dark
    }
    else
    {
        digitalWrite(3, LOW); // Turns the LED OFF in light
    }
}

analogWrite()

Description

analogRead is an inbuilt function in the Arduino IDE which takes the name of the analog pin to which an analog value has to be written as its parameter and a duty cycle which takes values between 0 and 255.

Parameters

1. The Arduino pin to write to
2. The Duty Cycle between 0 and 255

Return Value

There is no return value

Syntax

int ledPin = 9; // LED connected to digital pin 9
int analogPin = 3; // potentiometer connected to analog pin 3
int val = 0; // variable to store the read value

void setup(){
    pinMode(ledPin, OUTPUT); // sets the pin as output
}

void loop(){
    val = analogRead(analogPin); // read the input pin
    analogWrite(ledPin, val / 4); // analogRead values go from 0 to 1023, analogWrite values from 0 to 255
}

You can read more about this function here. Also, you can watch this video for a better understanding.

Dimming an LED using analogWrite()

int brightness = 0;

void setup(){
    pinMode(9, OUTPUT);
}

void loop()
{
    // increase brightness from 0 to 255
    for (brightness = 0; brightness <= 255; brightness += 5)
    {
        analogWrite(9, brightness);
        delay(30);
    }
    // decrease brightness from 255 to 0
    for (brightness = 255; brightness >= 0; brightness -= 5)
    {
        analogWrite(9, brightness);
        delay(30);
    }
}

Assignment

1. Design a circuit to implement the following pattern https://drive.google.com/file/d/1GvE10pqHQpQtyl-22PwxoOMf0mMw6aj4/view?usp=share_link

2. Controlling Brightness of LED using PWM.

3. Now do the above assignment(assignment 2) using analog pins but add push button such that with every press the brightness increases by 50 and as soon it reaches full brightness the process resets.
