#include "MPU6050_6Axis_MotionApps20.h"
//#include "MPU6050.h" // not necessary if using MotionApps include file

// Arduino Wire library is required if I2Cdev I2CDEV_ARDUINO_WIRE implementation
// is used in I2Cdev.h
#if I2CDEV_IMPLEMENTATION == I2CDEV_ARDUINO_WIRE
#include "Wire.h"
#endif

// class default I2C address is 0x68
// specific I2C addresses may be passed as a parameter here
// AD0 low = 0x68 (default for SparkFun breakout and InvenSense evaluation board)
// AD0 high = 0x69
MPU6050 mpu;
//MPU6050 mpu(0x69); // <-- use for AD0 high

/\* =========================================================================

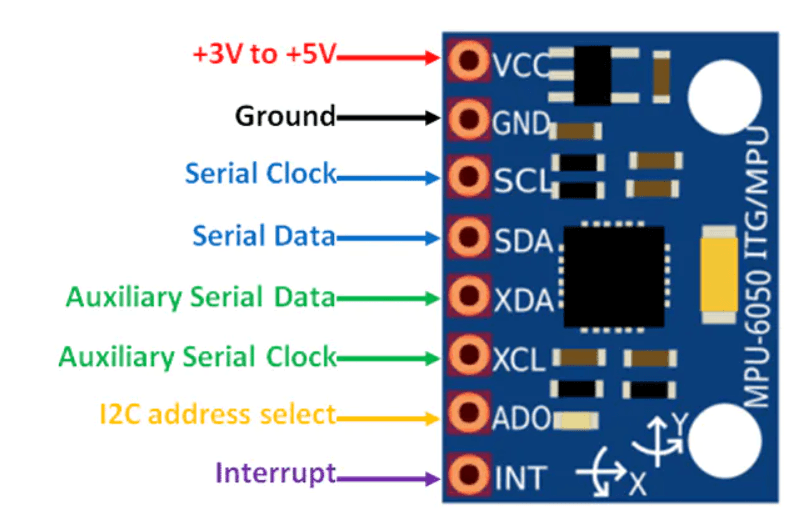

NOTE: In addition to connection 3.3v, GND, SDA, and SCL, this sketch
depends on the MPU-6050's INT pin being connected to the Arduino's
external interrupt #0 pin. On the Arduino Uno and Mega 2560, this is
digital I/O pin 2.

- ========================================================================= \*/

/\* =========================================================================
NOTE: Arduino v1.0.1 with the Leonardo board generates a compile error
when using Serial.write(buf, len). The Teapot output uses this method.
The solution requires a modification to the Arduino USBAPI.h file, which
is fortunately simple, but annoying. This will be fixed in the next IDE
release. For more info, see these links:

http://arduino.cc/forum/index.php/topic,109987.0.html
http://code.google.com/p/arduino/issues/detail?id=958

- ========================================================================= \*/

// uncomment "OUTPUT_READABLE_QUATERNION" if you want to see the actual
// quaternion components in a [w, x, y, z] format (not best for parsing
// on a remote host such as Processing or something though)
//#define OUTPUT_READABLE_QUATERNION

// uncomment "OUTPUT_READABLE_EULER" if you want to see Euler angles
// (in degrees) calculated from the quaternions coming from the FIFO.
// Note that Euler angles suffer from gimbal lock (for more info, see
// http://en.wikipedia.org/wiki/Gimbal_lock)
//#define OUTPUT_READABLE_EULER

// uncomment "OUTPUT_READABLE_YAWPITCHROLL" if you want to see the yaw/
// pitch/roll angles (in degrees) calculated from the quaternions coming
// from the FIFO. Note this also requires gravity vector calculations.
// Also note that yaw/pitch/roll angles suffer from gimbal lock (for
// more info, see: http://en.wikipedia.org/wiki/Gimbal_lock)
#define OUTPUT_READABLE_YAWPITCHROLL

// uncomment "OUTPUT_READABLE_REALACCEL" if you want to see acceleration
// components with gravity removed. This acceleration reference frame is
// not compensated for orientation, so +X is always +X according to the
// sensor, just without the effects of gravity. If you want acceleration
// compensated for orientation, us OUTPUT_READABLE_WORLDACCEL instead.
//#define OUTPUT_READABLE_REALACCEL

// uncomment "OUTPUT_READABLE_WORLDACCEL" if you want to see acceleration
// components with gravity removed and adjusted for the world frame of
// reference (yaw is relative to initial orientation, since no magnetometer
// is present in this case). Could be quite handy in some cases.
//#define OUTPUT_READABLE_WORLDACCEL

// uncomment "OUTPUT_TEAPOT" if you want output that matches the
// format used for the InvenSense teapot demo
//#define OUTPUT_TEAPOT

#define INTERRUPT_PIN 2 // use pin 2 on Arduino Uno & most boards
#define LED_PIN 13 // (Arduino is 13, Teensy is 11, Teensy++ is 6)
bool blinkState = false;

// MPU control/status vars
bool dmpReady = false; // set true if DMP init was successful
uint8_t mpuIntStatus; // holds actual interrupt status byte from MPU
uint8_t devStatus; // return status after each device operation (0 = success, !0 = error)
uint16_t packetSize; // expected DMP packet size (default is 42 bytes)
uint16_t fifoCount; // count of all bytes currently in FIFO
uint8_t fifoBuffer[64]; // FIFO storage buffer

// orientation/motion vars
Quaternion q; // [w, x, y, z] quaternion container
VectorInt16 aa; // [x, y, z] accel sensor measurements
VectorInt16 aaReal; // [x, y, z] gravity-free accel sensor measurements
VectorInt16 aaWorld; // [x, y, z] world-frame accel sensor measurements
VectorFloat gravity; // [x, y, z] gravity vector
float euler[3]; // [psi, theta, phi] Euler angle container
float ypr[3]; // [yaw, pitch, roll] yaw/pitch/roll container and gravity vector

// packet structure for InvenSense teapot demo
uint8_t teapotPacket[14] = { '$', 0x02, 0,0, 0,0, 0,0, 0,0, 0x00, 0x00, '\r', '\n' };

// ================================================================
// === INTERRUPT DETECTION ROUTINE ===
// ================================================================

volatile bool mpuInterrupt = false; // indicates whether MPU interrupt pin has gone high
void dmpDataReady() {
mpuInterrupt = true;
}

// ================================================================
// === INITIAL SETUP ===
// ================================================================

void setup() {
// join I2C bus (I2Cdev library doesn't do this automatically)
#if I2CDEV_IMPLEMENTATION == I2CDEV_ARDUINO_WIRE
Wire.begin();
Wire.setClock(400000); // 400kHz I2C clock. Comment this line if having compilation difficulties
#elif I2CDEV_IMPLEMENTATION == I2CDEV_BUILTIN_FASTWIRE
Fastwire::setup(400, true);
#endif

    // initialize serial communication
    // (115200 chosen because it is required for Teapot Demo output, but it's
    // really up to you depending on your project)
    Serial.begin(115200);
    while (!Serial); // wait for Leonardo enumeration, others continue immediately

    // NOTE: 8MHz or slower host processors, like the Teensy @ 3.3V or Arduino
    // Pro Mini running at 3.3V, cannot handle this baud rate reliably due to
    // the baud timing being too misaligned with processor ticks. You must use
    // 38400 or slower in these cases, or use some kind of external separate
    // crystal solution for the UART timer.

    // initialize device
    Serial.println(F("Initializing I2C devices..."));
    mpu.initialize();
    pinMode(INTERRUPT_PIN, INPUT);

    // verify connection
    Serial.println(F("Testing device connections..."));
    Serial.println(mpu.testConnection() ? F("MPU6050 connection successful") : F("MPU6050 connection failed"));

    // wait for ready
    Serial.println(F("\nSend any character to begin DMP programming and demo: "));
    while (Serial.available() && Serial.read()); // empty buffer
    while (!Serial.available());                 // wait for data
    while (Serial.available() && Serial.read()); // empty buffer again

    // load and configure the DMP
    Serial.println(F("Initializing DMP..."));
    devStatus = mpu.dmpInitialize();

    // supply your own gyro offsets here, scaled for min sensitivity
    mpu.setXGyroOffset(220);
    mpu.setYGyroOffset(76);
    mpu.setZGyroOffset(-85);
    mpu.setZAccelOffset(1788); // 1688 factory default for my test chip

    // make sure it worked (returns 0 if so)
    if (devStatus == 0) {
        // Calibration Time: generate offsets and calibrate our MPU6050
        mpu.CalibrateAccel(6);
        mpu.CalibrateGyro(6);
        mpu.PrintActiveOffsets();
        // turn on the DMP, now that it's ready
        Serial.println(F("Enabling DMP..."));
        mpu.setDMPEnabled(true);

        // enable Arduino interrupt detection
        Serial.print(F("Enabling interrupt detection (Arduino external interrupt "));
        Serial.print(digitalPinToInterrupt(INTERRUPT_PIN));
        Serial.println(F(")..."));
        attachInterrupt(digitalPinToInterrupt(INTERRUPT_PIN), dmpDataReady, RISING);
        mpuIntStatus = mpu.getIntStatus();

        // set our DMP Ready flag so the main loop() function knows it's okay to use it
        Serial.println(F("DMP ready! Waiting for first interrupt..."));
        dmpReady = true;

        // get expected DMP packet size for later comparison
        packetSize = mpu.dmpGetFIFOPacketSize();
    } else {
        // ERROR!
        // 1 = initial memory load failed
        // 2 = DMP configuration updates failed
        // (if it's going to break, usually the code will be 1)
        Serial.print(F("DMP Initialization failed (code "));
        Serial.print(devStatus);
        Serial.println(F(")"));
    }

    // configure LED for output
    pinMode(LED_PIN, OUTPUT);

}

// ================================================================
// === MAIN PROGRAM LOOP ===
// ================================================================

void loop() {
// if programming failed, don't try to do anything
if (!dmpReady) return;

    // wait for MPU interrupt or extra packet(s) available
    while (!mpuInterrupt && fifoCount < packetSize) {
        if (mpuInterrupt && fifoCount < packetSize) {
          // try to get out of the infinite loop
          fifoCount = mpu.getFIFOCount();
        }
        // other program behavior stuff here
        // .
        // .
        // .
        // if you are really paranoid you can frequently test in between other
        // stuff to see if mpuInterrupt is true, and if so, "break;" from the
        // while() loop to immediately process the MPU data
        // .
        // .
        // .
    }

    // reset interrupt flag and get INT_STATUS byte
    mpuInterrupt = false;
    mpuIntStatus = mpu.getIntStatus();

    // get current FIFO count
    fifoCount = mpu.getFIFOCount();
    if(fifoCount < packetSize){
            //Lets go back and wait for another interrupt. We shouldn't be here, we got an interrupt from another event
    		// This is blocking so don't do it   while (fifoCount < packetSize) fifoCount = mpu.getFIFOCount();
    }
    // check for overflow (this should never happen unless our code is too inefficient)
    else if ((mpuIntStatus & _BV(MPU6050_INTERRUPT_FIFO_OFLOW_BIT)) || fifoCount >= 1024) {
        // reset so we can continue cleanly
        mpu.resetFIFO();
      //  fifoCount = mpu.getFIFOCount();  // will be zero after reset no need to ask
        Serial.println(F("FIFO overflow!"));

    // otherwise, check for DMP data ready interrupt (this should happen frequently)
    } else if (mpuIntStatus & _BV(MPU6050_INTERRUPT_DMP_INT_BIT)) {

        // read a packet from FIFO
    while(fifoCount >= packetSize){ // Lets catch up to NOW, someone is using the dreaded delay()!
    	mpu.getFIFOBytes(fifoBuffer, packetSize);
    	// track FIFO count here in case there is > 1 packet available
    	// (this lets us immediately read more without waiting for an interrupt)
    	fifoCount -= packetSize;
    }
        #ifdef OUTPUT_READABLE_QUATERNION
            // display quaternion values in easy matrix form: w x y z
            mpu.dmpGetQuaternion(&q, fifoBuffer);
            Serial.print("quat\t");
            Serial.print(q.w);
            Serial.print("\t");
            Serial.print(q.x);
            Serial.print("\t");
            Serial.print(q.y);
            Serial.print("\t");
            Serial.println(q.z);
        #endif

        #ifdef OUTPUT_READABLE_EULER
            // display Euler angles in degrees
            mpu.dmpGetQuaternion(&q, fifoBuffer);
            mpu.dmpGetEuler(euler, &q);
            Serial.print("euler\t");
            Serial.print(euler[0] * 180/M_PI);
            Serial.print("\t");
            Serial.print(euler[1] * 180/M_PI);
            Serial.print("\t");
            Serial.println(euler[2] * 180/M_PI);
        #endif

        #ifdef OUTPUT_READABLE_YAWPITCHROLL
            // display Euler angles in degrees
            mpu.dmpGetQuaternion(&q, fifoBuffer);
            mpu.dmpGetGravity(&gravity, &q);
            mpu.dmpGetYawPitchRoll(ypr, &q, &gravity);
            Serial.print("ypr\t");
            Serial.print(ypr[0] * 180/M_PI);
            Serial.print("\t");
            Serial.print(ypr[1] * 180/M_PI);
            Serial.print("\t");
            Serial.println(ypr[2] * 180/M_PI);
        #endif

        #ifdef OUTPUT_READABLE_REALACCEL
            // display real acceleration, adjusted to remove gravity
            mpu.dmpGetQuaternion(&q, fifoBuffer);
            mpu.dmpGetAccel(&aa, fifoBuffer);
            mpu.dmpGetGravity(&gravity, &q);
            mpu.dmpGetLinearAccel(&aaReal, &aa, &gravity);
            Serial.print("areal\t");
            Serial.print(aaReal.x);
            Serial.print("\t");
            Serial.print(aaReal.y);
            Serial.print("\t");
            Serial.println(aaReal.z);
        #endif

        #ifdef OUTPUT_READABLE_WORLDACCEL
            // display initial world-frame acceleration, adjusted to remove gravity
            // and rotated based on known orientation from quaternion
            mpu.dmpGetQuaternion(&q, fifoBuffer);
            mpu.dmpGetAccel(&aa, fifoBuffer);
            mpu.dmpGetGravity(&gravity, &q);
            mpu.dmpGetLinearAccel(&aaReal, &aa, &gravity);
            mpu.dmpGetLinearAccelInWorld(&aaWorld, &aaReal, &q);
            Serial.print("aworld\t");
            Serial.print(aaWorld.x);
            Serial.print("\t");
            Serial.print(aaWorld.y);
            Serial.print("\t");
            Serial.println(aaWorld.z);
        #endif

        #ifdef OUTPUT_TEAPOT
            // display quaternion values in InvenSense Teapot demo format:
            teapotPacket[2] = fifoBuffer[0];
            teapotPacket[3] = fifoBuffer[1];
            teapotPacket[4] = fifoBuffer[4];
            teapotPacket[5] = fifoBuffer[5];
            teapotPacket[6] = fifoBuffer[8];
            teapotPacket[7] = fifoBuffer[9];
            teapotPacket[8] = fifoBuffer[12];
            teapotPacket[9] = fifoBuffer[13];
            Serial.write(teapotPacket, 14);
            teapotPacket[11]++; // packetCount, loops at 0xFF on purpose
        #endif

        // blink LED to indicate activity
        blinkState = !blinkState;
        digitalWrite(LED_PIN, blinkState);
    }

}

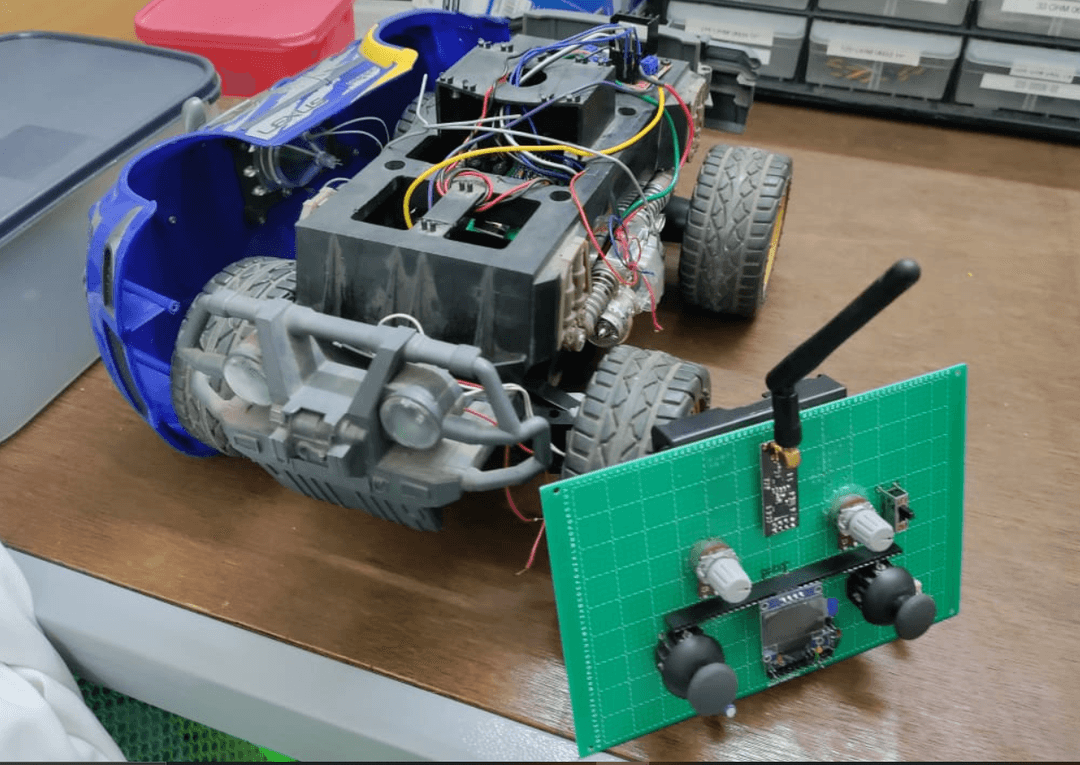

#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>
#include <Wire.h>
#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128 // OLED display width, in pixels
#define SCREEN_HEIGHT 64 // OLED display height, in pixels

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
Adafruit_MPU6050 mpu;

// Define the digital inputs
/_#define jB1 1 // Joystick button 1
#define jB2 0 // Joystick button 2
#define t1 7 // Toggle switch 1
#define t2 4 // Toggle switch 1
#define b1 8 // Button 1
#define b2 9 // Button 2
#define b3 2 // Button 3
#define b4 3 // Button 4_/
#define forwardLed 7
#define sidewardLed 2
#define modeSwitchPin 3
//const int MPU = 0x68; // MPU6050 I2C address
float AccX, AccY, AccZ;
float GyroX, GyroY, GyroZ;
float accAngleX, accAngleY, gyroAngleX, gyroAngleY;
float angleX, angleY;
float AccErrorX, AccErrorY, GyroErrorX, GyroErrorY;
float elapsedTime, currentTime, previousTime;
int c = 0;

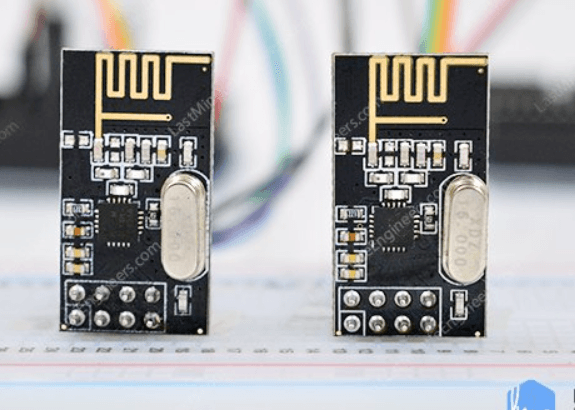

RF24 radio(5, 6); // nRF24L01 (CE, CSN)
const byte address[6] = "00001"; // Address
// Max size of this struct is 32 bytes - NRF24L01 buffer limit
struct Data_Package {
byte j1PotY;
byte j2PotX;
byte IMUfwdrev;
byte IMUlr;
byte ModeSwitch;
};

Data_Package data; //Create a variable with the above structure
void setup() {

Serial.begin(115200);
while (!Serial)
delay(10); // will pause Zero, Leonardo, etc until serial console opens

Serial.println("Adafruit MPU6050 test!");

// Try to initialize!
if (!mpu.begin()) {
Serial.println("Failed to find MPU6050 chip");
while (1) {
delay(10);
}
}
Serial.println("MPU6050 Found!");
pinMode(forwardLed, OUTPUT);
pinMode(sidewardLed, OUTPUT);

if(!display.begin(SSD1306_SWITCHCAPVCC, 0x3C))
{
Serial.println("SSD1306 allocation failed");

//for(;;); // Don't proceed, loop forever
}

// display.clearDisplay();
//
// display.setTextSize(2);
// display.setTextColor(WHITE);
// display.setCursor(0, 10);
// // Display static text
// display.println("The display is working");
// display.display();
//
 // Initialize interface to the MPU6050
//initialize_MPU6050();
// Call this function if you need to get the IMU error values for your module
//calculate_IMU_error();

// Define the radio communication
radio.begin();
radio.openWritingPipe(address);
//radio.setAutoAck(false);
//radio.setDataRate(RF24*250KBPS);
radio.stopListening();
//radio.setPALevel(RF24_PA_LOW);
/*
// Activate the Arduino internal pull-up resistors
pinMode(jB1, INPUT*PULLUP);
pinMode(jB2, INPUT_PULLUP);
pinMode(t1, INPUT_PULLUP);
pinMode(t2, INPUT_PULLUP);
pinMode(b1, INPUT_PULLUP);
pinMode(b2, INPUT_PULLUP);
pinMode(b3, INPUT_PULLUP);
pinMode(b4, INPUT_PULLUP);*/

// Set initial default values
//data.j1PotX = 127; // Values from 0 to 255. When Joystick is in resting position, the value is in the middle, or 127. We actually map the pot value from 0 to 1023 to 0 to 255 because that's one BYTE value
data.j1PotY = 127;
data.j2PotX = 127;
/_data.j2PotY = 127;
data.j1Button = 1;
data.j2Button = 1;
data.pot1 = 1;
data.pot2 = 1;
data.tSwitch1 = 1;
data.tSwitch2 = 1;
data.button1 = 1;
data.button2 = 1;
data.button3 = 1;
data.button4 = 1;_/

mpu.setAccelerometerRange(MPU6050_RANGE_8_G);
Serial.print("Accelerometer range set to: ");
switch (mpu.getAccelerometerRange()) {
case MPU6050_RANGE_2_G:
Serial.println("+-2G");
break;
case MPU6050_RANGE_4_G:
Serial.println("+-4G");
break;
case MPU6050_RANGE_8_G:
Serial.println("+-8G");
break;
case MPU6050_RANGE_16_G:
Serial.println("+-16G");
break;
}
mpu.setGyroRange(MPU6050_RANGE_500_DEG);
Serial.print("Gyro range set to: ");
switch (mpu.getGyroRange()) {
case MPU6050_RANGE_250_DEG:
Serial.println("+- 250 deg/s");
break;
case MPU6050_RANGE_500_DEG:
Serial.println("+- 500 deg/s");
break;
case MPU6050_RANGE_1000_DEG:
Serial.println("+- 1000 deg/s");
break;
case MPU6050_RANGE_2000_DEG:
Serial.println("+- 2000 deg/s");
break;
}

mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);
Serial.print("Filter bandwidth set to: ");
switch (mpu.getFilterBandwidth()) {
case MPU6050_BAND_260_HZ:
Serial.println("260 Hz");
break;
case MPU6050_BAND_184_HZ:
Serial.println("184 Hz");
break;
case MPU6050_BAND_94_HZ:
Serial.println("94 Hz");
break;
case MPU6050_BAND_44_HZ:
Serial.println("44 Hz");
break;
case MPU6050_BAND_21_HZ:
Serial.println("21 Hz");
break;
case MPU6050_BAND_10_HZ:
Serial.println("10 Hz");
break;
case MPU6050_BAND_5_HZ:
Serial.println("5 Hz");
break;
}

Serial.println("");
}
void loop() {
// Read all analog inputs and map them to one Byte value
// data.j1PotX = map(analogRead(A1), 0, 1023, 0, 255); // Convert the analog read value from 0 to 1023 into a BYTE value from 0 to 255
data.ModeSwitch = digitalRead(modeSwitchPin);
Serial.println(data.ModeSwitch);
data.j1PotY = map(analogRead(A6), 0, 1023, 0, 255);
data.j2PotX = map(analogRead(A1), 0, 1023, 0, 255);
//Serial.println("for front-back joystick");
Serial.println(data.j1PotY);
if(data.j1PotY >= 140 || data.j1PotY <= 120)
digitalWrite(forwardLed, HIGH);
else
digitalWrite(forwardLed, LOW);
// Serial.println("for sideward joystick");
// Serial.println(data.j2PotX);
if(data.j2PotX <= 120 || data.j2PotX >= 140 )
{

      digitalWrite(sidewardLed, HIGH);
    }

else
digitalWrite(sidewardLed, LOW);

//
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp);

// /_ Print out the values _/
// Serial.print("Acceleration X: ");
// Serial.print(a.acceleration.x);
// Serial.print(", Y: ");
// Serial.print(a.acceleration.y);
// Serial.print(", Z: ");
// Serial.print(a.acceleration.z);
// Serial.println(" m/s^2");
//
// Serial.print("Rotation X: ");
// Serial.print(g.gyro.x);
// Serial.print(", Y: ");
// Serial.print(g.gyro.y);
// Serial.print(", Z: ");
// Serial.print(g.gyro.z);
// Serial.println(" rad/s");

// Serial.print("Temperature: ");
// Serial.print(temp.temperature);
// Serial.println(" degC");

Serial.println("");

AccX = a.acceleration.x;
AccY = a.acceleration.y;
AccZ = a.acceleration.z;
GyroX = g.gyro.x;
GyroY = g.gyro.y;
GyroZ = g.gyro.z;

// while (c < 20) {
// AccErrorX = AccErrorX + ((atan((AccY) / sqrt(pow((AccX), 2) + pow((AccZ), 2))) _ 180 / PI));
// AccErrorY = AccErrorY + ((atan(-1 _ (AccX) / sqrt(pow((AccY), 2) + pow((AccZ), 2))) \* 180 / PI));
// GyroErrorX = GyroErrorX + (GyroX / 32.8);
// GyroErrorY = GyroErrorY + (GyroY / 32.8);
// cpp;
// }
read_IMU();

// Serial.print("Angle X (used for direction change): ");
// Serial.println(accAngleX);
// Serial.print("Angle Y (used for fwd and rev): ");
// Serial.println(accAngleY);

Serial.println("Values sent to the car: ");
Serial.print("IMUfwdrev : ");
Serial.println(data.IMUfwdrev);
Serial.print("IMUlr : ");
Serial.println(data.IMUlr);

    // Send the whole data from the structure to the receiver

radio.write(&data, sizeof(Data_Package));

}

void read_IMU() {

accAngleX = (atan(AccY / sqrt(pow(AccX, 2) + pow(AccZ, 2))) _ 180 / PI) + 1.15; // AccErrorX ~(-1.15) See the calculate_IMU_error()custom function for more details
accAngleY = (atan(-1 _ AccX / sqrt(pow(AccY, 2) + pow(AccZ, 2))) _ 180 / PI) - 0.52; // AccErrorX ~(0.5)
// === Read gyro data === //
// previousTime = currentTime; // Previous time is stored before the actual time read
// currentTime = millis(); // Current time actual time read
// elapsedTime = (currentTime - previousTime) / 1000; // Divide by 1000 to get seconds
// GyroX = GyroX + 1.85; //// GyroErrorX ~(-1.85)
// GyroY = GyroY - 0.15; // GyroErrorY ~(0.15)
// // Currently the raw values are in degrees per seconds, deg/s, so we need to multiply by sendonds (s) to get the angle in degrees
// gyroAngleX = GyroX _ elapsedTime;
// gyroAngleY = GyroY _ elapsedTime;
// // Complementary filter - combine acceleromter and gyro angle values
// angleX = 0.98 _ (angleX + gyroAngleX) + 0.02 _ accAngleX;
// angleY = 0.98 _ (angleY + gyroAngleY) + 0.02 \* accAngleY;
// Map the angle values from -90deg to +90 deg into values from 0 to 255, like the values we are getting from the Joystick
data.IMUfwdrev = map(accAngleY, -90, +40, 0, 255);
data.IMUlr = map(accAngleX, -80, +80, 255, 0);

}

#include <nRF24L01.h>
#include <RF24.h>
#include <Wire.h>
#include <SPI.h>

//RF24 radio(7, 8);   // nRF24L01 (CE, CSN) for NANO
//RF24 radio(9, 10);   // nRF24L01 (CE, CSN) for UNO
RF24 radio(5, 6);   // nRF24L01 (CE, CSN) for PRO MINI
const byte address[6] = "00001"; // Address
   //Max size of this struct is 32 bytes - NRF24L01 buffer limit

#define ForwardReverse 9 // pwm pin to the hbridge to vary motor speed
#define Sideward 10   // pwm pin to the hbridge to vary motor speed

#define ForwardReverse 9
#define Sideward 10
#define forward 7
#define reverse 8
#define right 3
#define left 4

int ModeSwitch;
struct Data_Package {
  byte j1PotY;
  byte j2PotX;
  byte IMUfwdrev;
  byte IMUlr;
  byte ModeSwitch;
};

Data_Package data;


void setup() {
  Serial.begin(9600);
  pinMode(right, OUTPUT);
  pinMode(left, OUTPUT);
  pinMode(2, OUTPUT);  // led for debugging and showing comms working
  pinMode(forward, OUTPUT);
  pinMode(ForwardReverse, OUTPUT);
  pinMode(Sideward, OUTPUT);
  pinMode(reverse, OUTPUT);
  digitalWrite(2, HIGH);
  delay(1000);
  digitalWrite(2, LOW);


  //pinMode(LED_BUILTIN, OUTPUT);
  radio.begin();
  radio.openReadingPipe(0, address);
  //radio.setPALevel(RF24_PA_MIN);
  radio.startListening();

    //data.j1PotX = 127; // Values from 0 to 255. When Joystick is in resting position, the value is in the middle, or 127. We actually map the pot value from 0 to 1023 to 0 to 255 because that's one BYTE value
  data.j1PotY = 127;
  data.j2PotX = 127;
  /*data.j2PotY = 127;
  data.j1Button = 1;
  data.j2Button = 1;
  data.pot1 = 1;
  data.pot2 = 1;
  data.tSwitch1 = 1;
  data.tSwitch2 = 1;
  data.button1 = 1;
  data.button2 = 1;
  data.button3 = 1;
  data.button4 = 1;*/

}

void loop() {
 Serial.println("This is Receiver");
 if (radio.available())
 {
   Serial.println("All Good");
   digitalWrite(2, !digitalRead(2));
   radio.read(&data, sizeof(Data_Package));
   ModeSwitch = data.ModeSwitch;
   //Serial.println(data.j1PotY);
   //Serial.println(data.j2PotX);
   /*digitalWrite(2, HIGH);
   delay(500);
   digitalWrite(2, LOW);
   delay(500);*/
 }
 else
 {
   digitalWrite(2, HIGH);
   //Stop();
  digitalWrite(forward, LOW);      // vehicle stops
  digitalWrite(reverse, LOW);
  analogWrite(ForwardReverse,0);
  digitalWrite(right, LOW);
  digitalWrite(left, LOW);
 }

 if(ModeSwitch){                     // This is the mode in which the bot will work in joystick mode

 if(data.j1PotY >= 130)
 {
   onward();
   if(data.j2PotX >= 130)
   {
    turnRight();
   }

   else if(data.j2PotX <= 120)
   {
    turnLeft();
   }
 }

 else if(data.j1PotY <= 120)
 {
   Reverse();
   if(data.j2PotX >= 130)
   {
    turnRight();
   }

   else if(data.j2PotX <= 120)
   {
    turnLeft();
   }
 }

 else if(data.j1PotY <= 130 && data.j1PotY >=120)
 {
  Stop();
  if(data.j2PotX >= 130)
   {
    turnRight();
   }

   else if(data.j2PotX <= 120)
   {
    turnLeft();
   }
 }
 }



else if(!ModeSwitch){                     // this is the   mode n which the bot will work in motion control/ gesture control mode

  if(data.IMUfwdrev >= 140)
 {
   onwardMS();
   if(data.IMUlr >= 145)
   {
    turnRightMS();
   }

   else if(data.IMUlr <= 110)
   {
    turnLeftMS();
   }
 }

 else if(data.IMUfwdrev <= 100)
 {
   ReverseMS();
   if(data.IMUlr >= 145)
   {
    turnRightMS();
   }

   else if(data.IMUlr <= 110)
   {
    turnLeftMS();
   }
 }

 else if(data.IMUfwdrev < 140 && data.IMUfwdrev > 100)
 {
  Stop();
  if(data.IMUlr >= 145)
   {
    turnRightMS();
   }

   else if(data.IMUlr <= 110)
   {
    turnLeftMS();
   }
 }

}


}




int onward()
{
  digitalWrite(forward, HIGH);      // vehicle moves forward
  digitalWrite(reverse, LOW);
  analogWrite(ForwardReverse, (data.j1PotY-128)*2);
}

int Reverse()
{
  digitalWrite(forward, LOW);      // vehicle reverses
  digitalWrite(reverse, HIGH);
  analogWrite(ForwardReverse,(127-data.j1PotY)*2);
}
int turnRight()
{
  digitalWrite(left, LOW);      // steering turns right
  digitalWrite(right, HIGH);
  analogWrite(Sideward,(data.j2PotX-128)*2);
}

int turnLeft()
{
  digitalWrite(right, LOW);      // steering turns left
  digitalWrite(left, HIGH);
  analogWrite(Sideward,(127-data.j2PotX)*2);
}



int onwardMS()
{
  digitalWrite(forward, HIGH);      // vehicle moves forward
  digitalWrite(reverse, LOW);
  analogWrite(ForwardReverse, (data.IMUfwdrev-128)*2);
}

int ReverseMS()
{
  digitalWrite(forward, LOW);      // vehicle reverses
  digitalWrite(reverse, HIGH);
  analogWrite(ForwardReverse,(127-data.IMUfwdrev)*2);
}
int turnRightMS()
{
  digitalWrite(left, LOW);      // steering turns right
  digitalWrite(right, HIGH);
  analogWrite(Sideward,(data.IMUlr-128)*2);
}

int turnLeftMS()
{
  digitalWrite(right, LOW);      // steering turns left
  digitalWrite(left, HIGH);
  analogWrite(Sideward,(127-data.IMUlr)*2);
}

int Stop()
{
  digitalWrite(forward, LOW);      // vehicle stops
  digitalWrite(reverse, LOW);
  analogWrite(ForwardReverse,0);
  digitalWrite(right, LOW);
  digitalWrite(left, LOW);
}
