Interfacing 62256 SRAM using ATmega32A

Contributed By - Rohan Dvivedi

Aim

Interfacing of a 32k x 8 bit SRAM chip 62256 with ATmega32A microcontroller.

Project Description

A learning oriented project done to just ensure the correctness of the 62256 32k x 8 SRAM chips. It uses ATmega32A microcontroller burned with the “uC-SRAM-interfacing.cpp” using your AVR programmer, after compiling from avr8 gcc compiler.

Resistor

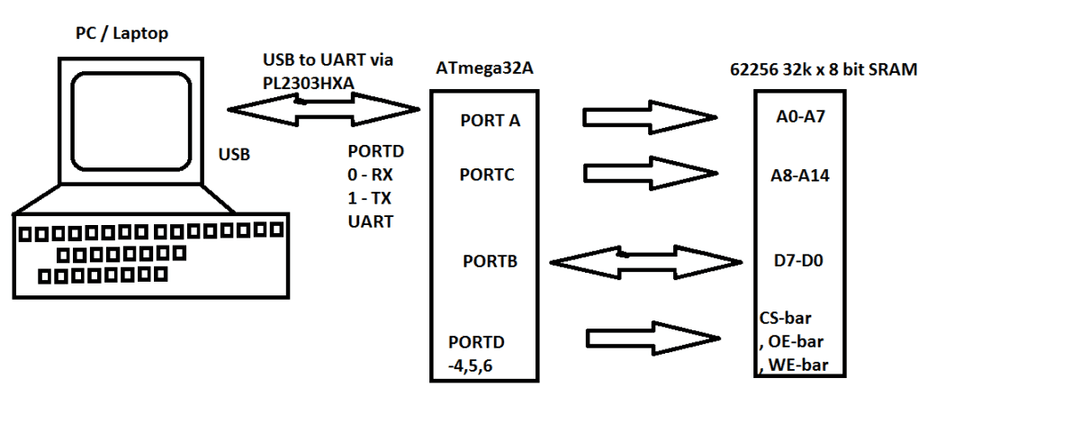

Connect the pins of SRAM and uC as shown. Connect your uC to PC by UART-USB communication, he has used PL2303HXA for USB to UART Compile and run the “console-control-for-RAM.cpp” on your desktop/laptop computer. In the Console : “Admin :” is where you type the input command. and “Microcontroller :” is where the uC responds.

Resistor

here on both the sides ‘;’ is the string termination character.

to read the command is: R-{address in RAM in decimal number};

to write the command is: W-{data to be written}-{address where you want to write data};

Example : to read from address 11322; R-11322;

to write 112 to address 12136; W-112-12136;

Checkout whole code used in this tutorial at his GitHub repository here
